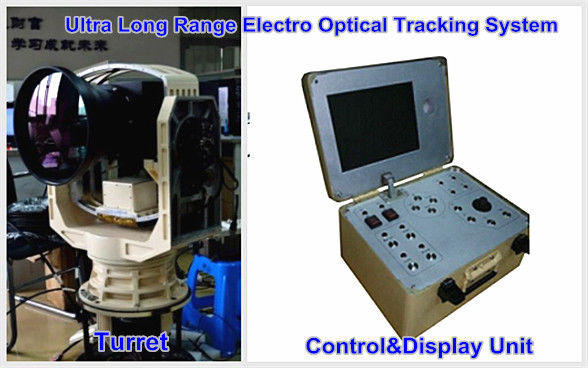

EOTS Ultra Long Range Electro Optical Tracking System with IR Camera JH602-1100
Description:
JH602-1100 EOTS electro-optical infrared (EO/IR) tracking camera system is equipped with
a high resolution 640x512 HgCdTe MWIR cooled thermal camera with 1100~110mm continuous
zoom lens which offers super long range security and surveillance application, capable of observation,
recognition, aiming and tracking target at day and night.
JH6021100 system can work independently for ship navigation and surveillance at night,or integrated
into a larger surveillance system, capable of receiving slaving instruction from radar.
Applications:
Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track target with
collimation control, navigation and early warning functions.
Features:
1. High accuracy continuous zoom lens matches complex variable control system, provides
crisp image and stabilized optic-axis in 110mm~1100mm focus length.
2. 640×512 HgCdTe cooled FPA detector provide high quality image.
3. Multi axis stabilization platform, combined with high accuracy gyro and servo control system,
ensures system have high accuracy stabilized tracking ability.
4. Portable CDU, easy operation.
5. Military standard components, high reliability, long lifetime enables working under severe
environment for a long time.
6. Fully-sealed waterproof, optical-mechanical electronic integration design meets military standard.
Specifications:
|
THERMAL CAMERA |
|
|
Detector |
Cooled HgCdTe FPA |
|
Pixel |
640×512 |
|
Spectral band |
3.7~4.8um |
|
FOV |
0.5°×0.4°~5°×4° with 1100~1100mm continuous zoom lens |
|
Optical-axis parallelism |
≤1 pixel |
|
SERVO |
|
|
Electronic zoom |
2× (optional: 4×) |
|
Stabilization accuracy |
≤0.15mrad(1σ) |
|
TURRET DIRECTION RANGE |
|
|
Azimuth |
0~330° (optional n×360°); |
|
Elevation |
-20°~+75° |
|
Turret maximum angle speed |
Azimuth: >50°/s; Elevation: >50°/s |
|
Tracking mode |
CTW, CTB, COT |
|
Video signal format |
standard CCIR |
|
Data rate |
50Hz,100Hz |
|
Communication |
RS422 |
|
POWER |
|
|
Input voltage |
DC 24V /15A, 220VAC |
|
Consumption |
96W (average), 240W (maximum) |
|
ENVIRONMENTAL |
|
|
Operating temperature range |
-40ºC~+60ºC |
|
Storage temperature range |
-50ºC~+70ºC |
|
PHYSICAL |
|
|
Dimension |
700mm × 700mm × 1050mm (Turret) 400mm × 300mm × 190mm (CDU) |
|
Weight |
approx. 127kg (Turret); 10kg(CDU) |
Tracking Display
