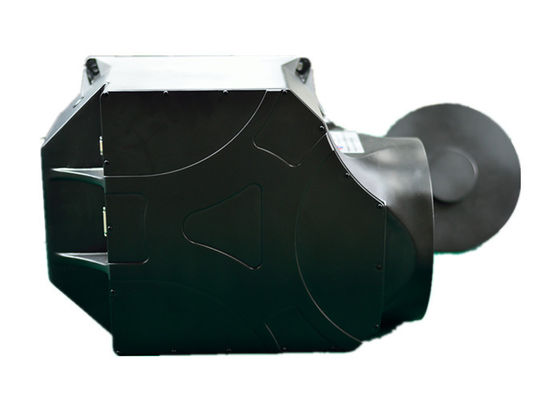

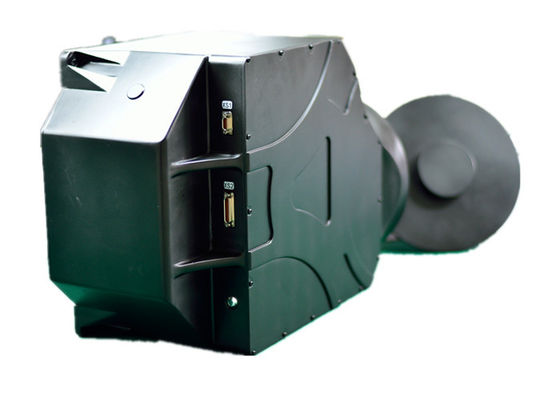

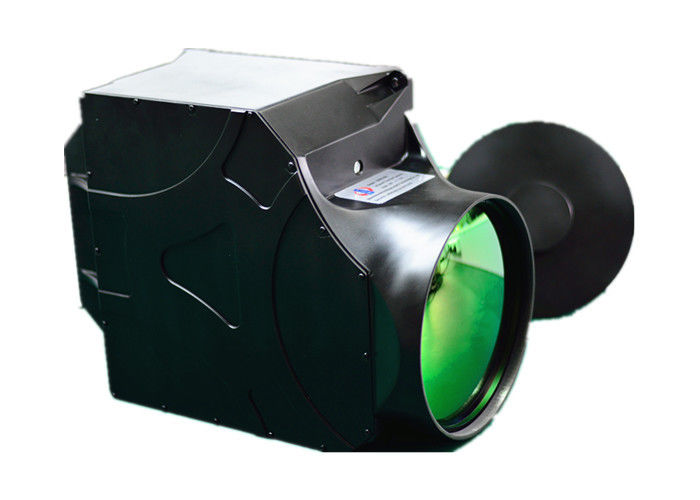

Long Range Surveillance Infrared Thermal Imaging Camera

China Long Range Surveillance Infrared Thermal Imaging Camera supplier
Long Range Surveillance Infrared Thermal Imaging Camera supplier Long Range Surveillance Infrared Thermal Imaging Camera supplier Long Range Surveillance Infrared Thermal Imaging Camera supplier

Large Image :  Long Range Surveillance Infrared Thermal Imaging Camera

Product Details:

Place of Origin: China
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: jh640-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Standard Safety Equipment Case
Delivery Time: 2months after received payment
Payment Terms: T/T, L/C
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Thermal Imaging Camera
Type: Continuous Zoom EO IR Camera Focus Length: 800~80mm Continous Zoom
Standard: GJB Feature: Waterproof/Weatherproof
Effective Distance: 30km(target:2.3m X 2.3m Vehicle) Applications: Navigation, Surveillance, Rescue

Long Range Surveillance Thermal Security Camera with 800mm - 80mm Continuous Zoom Lens





Description:



JH640-800Long Range Surveillance Thermal Security Camera is a matured and high reliability product to meet military standard. Itcan be widely applied in the fields of aerospace, military industry, border & coast defense and city safety surveillance. This high-tech long range surveillance cooled infrared thermal security camera  is desperate needed in all-weather target detection, recognition and pre-warning system.

The thermal camera has advantages of small size, high sensitivity,easy to control, long surveillance range, continuous zoom(focal length is 80~800mm, the complete focusing movement time is not more than 6s), all weather operations, and good integration. It can be used as a single machine for monitoring, also can be integrated in the electro-optical pod used as the infrared sight component.



Applications:



  • Integrated in EOT system
  • Airport and sea port monitoring
  • Boarder Security
  • Coastal Surveillance
  • Forest fire monitoring
  • Oil field, Industry plant, mining and warehouse monitoring



Features:



  • 800mm lens ensure extremely long-range detection&surveillance.
  • Continuous zooming optics satisfies multi-mission
  • High sensitivity and intelligent image enhancement optimize the image quality
  • Standard mechanical interface for easy integration
  • Full-sealed structure is suitable for different harsh environment.
  • Compact size



Specifications:



DETECTOR

Detector

Cooled HgCdTe FPA

Pixel

A mode: 640X512

B mode: 320x256

Spectral Range

A mode: 3.7μm~4.8μm

B mode: 3.7μm~4.8μm/7.7μm~11.0μm

NETD

≤25mK(at 25℃)

FPA Operating Temperature

90K~120K

Cooling Type

Stirling Cycle Cooling

Cooling

≤6min at 25ºC

OPTICS

Focal Length

80~800mm (continuous zoom) F#:4

FOV

6.87°×5.50°~0.69°×0.55°(H x V)

IMAGE DISPLAY

Video Output

Analog Video: Standard PAL

Frame Frequency:25Hz

Digital Video:14bits LVDS

Brightness & Contrast

Auto/Manual Adjust

Polarity

BH&WH

COMMUNICATION INTERFACE

Command and Control

 RS232

POWER SUPPLY

Power Supply

24VDC/1.5A

Wide Supply Range

18V~36V

Power Consumption

≤25w

ENVIRONMENTAL

Operating Temperature

-40ºC~+60ºC

Storage Temperature

-50ºC~+70ºC

Vibration &Shock Proof

GJB150.16-86 /MIL-STD-810F-514.5

 High & Low Temperature Test

GJB 150.3-86 / MIL-STD-810F-514.5

PHYSICAL

Weight

≤20kg

Size

460mm x 230mm x 325mm(LxWxH)

Color

Oxide black

DETECTION RANGE

Detection Range

30km(target:2.3m x 2.3m vehicle)
