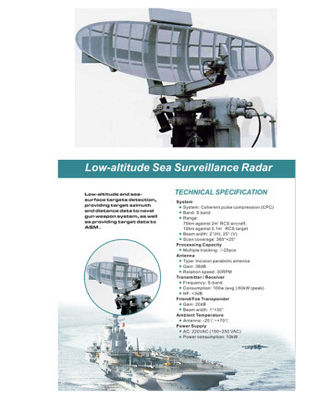

Coherent Pulse Compression Surveillance Radar System for Sea Surface Target Detection

Coherent Pulse Compression Surveillance Radar System for Sea Surface Target Detection

Coherent Pulse Compression Surveillance Radar System for Sea Surface Target Detection

Product Details:

Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000,GJB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Customed Packing
Delivery Time: 6months after received payment
Payment Terms: L/C, T/T
Supply Ability: 100Sets/year
Contact Now
Detailed Product Description
Type: S Band Radar Radar: Surveillance Radar
Range: 75km Against 2m2 Rcs Aircraft ; 12km Against 0.1m2 RCS Target Scan Coverage: 360° X 25°
IR: 3~5μm & 8~12μm Radar Beam Width: 2°(H), 25°(V)
Antenna Type: Incision Parabolic Antenna Multiple Tracking: ≥20pcs

Coherent Pulse Compression Surveillance Radar System for Sea Surface Target Detection





Description


Low-altitude and sea-surface targets detection, providing target azimuth and distance data to naval gun weapon system, as well as providing target data to ASM (anti-ship missile).



Technical specification

System

  • System: Coherent pulse compression (CPC)
  • Band: S band
  • Range: 75km against 2m2 RCS aircraft; 12km against 0.1m2 RCS target
  • Beam width: 2°(H), 25° (V)
  • Scan coverage: 360°×25°

Processing capacity

  • Multiple tracking: ≥20pcs

Antenna

  • Type: Incision parabolic antenna
  • Gain: 38dB
  • Rotation speed: 30RPM

Transmitter / Receiver

  • Frequency: S-band
  • Consumption: 100w (avg.) 60kW (peak)
  • NF: <3dB

Friend/Foe Transponder

  • Gain: 20dB
  • Beam width: 1°×30°

Ambient temperature

  • Antenna: -25℃~+70℃

Power supply

  • AC: 220VAC (150~250 VAC)
  • Power consumption: 10kW

Coherent Pulse Compression Surveillance Radar System for Sea Surface Target Detection
