WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | China |
| Brand Name: | Joho |
| Certification: | ISO9001 |
| Model Number: | JH240-1 |
| Features: | Gyro Stabilization And Target Tracking Functions | Application: | Search And Rescue UAVs |
|---|---|---|---|
| Sensors: | IR+Daylight Camera+LRF | IP Grade: | IP66 |
| Communication: | RS232 | Detector: | Uncooled FPA |
| Pixel Size: | 12μm×12μm | Resolution: | 1920×1080 |
| Focal Length: | 5.4mm～270mm | Functionns: | Target,search And Rescue |
| Operating Temperature: | ﹣20℃～﹢60℃ | ||
| High Light: | 90mm Thermal Camera System,UAVs Tracking Thermal Camera System,Thermal Electro Optical Tracking System |
||
35mm～90mm Thermal Camera System For Search And Tracking UAVs

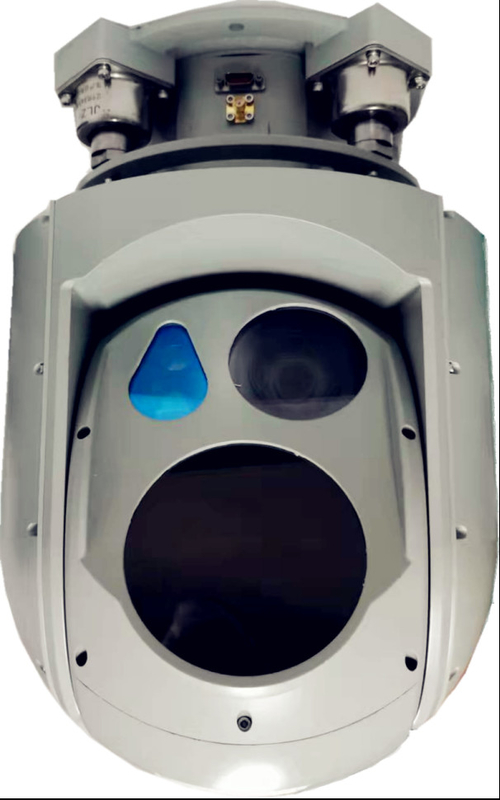

JH240-1 EO/IR gimbal is an optical - mechanical - electrical integrated search and tracking system, equipped with a HD daylight camera with 50× continuous zoom, an IR camera with 35 mm～90mm lens and a 3km laser range finder, with the total weight within 7kg. It is integrated with gyro stabilization and target tracking functions. This gimbal is mainly deployed on the search and rescue UAVs to work day and night.
Features
Technical Specification
| SYSTEM PARAMETER | |
| Stabilization platform | 2-axis |
| Range |
Azimuth:360° continuous |
| Max. angular speed |
Azimuth:≥60°/s |
| Random error of angular report accuracy | ≤0.1° |
| Stabilization accuracy | ≤ 0.1mrad |
| IP grade | IP66 |
| External interface |
Power supply:DC24V |
| IR CAMERA | |
| Detector | Uncooled FPA |
| Resolution | 640×512 |
| Pixel size | 12μm×12μm |
| Spectral band | 8μm～14μm |
| Focal length | 35mm～90mm |
| FOV | 17.57°～4.89° |
| DAYLIGHT CAMERA | |
| Sensor | 1/2.8’’ CMOS |
| Resolution | 1920×1080 |
| Optical zoom | 50× |
| Focal length | 5.4mm～270mm |
| FOV | 63°×38° |
| LASER RANGE FINDER | |
| Wavelength | 905nm |
| Divergence angle | 10mrad |
| Range | 15m～3km |
| Accuracy | ±1m |
| PHYSICAL PARAMETER | |
| Dimension | Φ235mm×320mm |
| Weight | 7kg |
| Color | airplane gray |
| ENVIRONMENTAL PARAMETER | |
| Operating temperature | ﹣20℃～﹢60℃ |
| Storage temperature | ﹣30℃～﹢70℃ |
Company Profile
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.
Customer Distribution
Service Process
Products
Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
