30mm~300mm Focal Length Ship-Borne EO/IR Surveillance System (EOSS)



JH602-28015 ship-borne electro-optical surveillance system is a highly integrated optical-mechanical-electro system equipped with a HD 1080p daylight camera and MWIR cooled thermal camera. The camera is slaving to a 2-axis and 2-gimbal stabilized platform. Featured with compact and modular design, it is provided for ships meeting Standardcivilian requirements such as search, observation, reconnaissance and tracking sea-surface targets, widely applied in navy, coastal guard and maritime etc.

Main Functions

  1. 2-axis (azimuth and elevation) stabilization, high accuracy gyro and servo control system implement full coverage reconnaissance.
  2. Compact size, light weight, strong adaptability, low power consumption and high cost-efficiency.
  3. Video tracking function. Real-time tracking, manual /auto tracking and auto locked are available.
  4. High accuracy correction ensures optical axis of IR and CCD are alignment.
  5. Gimbal is controlled by user friendly software
  6. Operation mode, azimuth angle and elevation angle data are able to be displayed on video and transmitted back.
  7. Fully sealed, water-proof, vibration resistance, shock resistance, long lifetime under harsh environment.

Technical Specification

System Specifications
Azimuth Coverage n×360° continuous
Elevation Coverage -20°~+75° (horizontal is 0°,downward is minus.)
Stabilization accuracy ≤0.5mrad(1σ)
Angular accuracy ±0.1°(1σ)
Output image format SDI
HD Daylight Camera
CCD SONY 1/2.8CMOS
Resolution 1920×1080
Focal Length 4.3mm~129mm (30× optical zoom)
FOV 63.7°~2.3°
Lens HD 2.13million pixel
Focusing Automatic
IR Thermal Camera
Detector 640×512 cooled MWIR detector
Spectrum 3μm~5μm
Pixel size 15μm×15μm
Focal length 30mm~300mm
Video Tracking Module
Auto/manual search target in specified area
Target selection support auto/manual locking
Target tracking scene to air, to sea (it is able to optimize target on the basis of video/image provided by user).
Intelligent recapture target after lost in short time
Support fixed FOV or variable FOV camera. In tracking status, it keeps tracking target while changing FOV
Parameters
Minimum Tracking Contrast 10%
Minimum SNR 10dB
Minimum target size 3×3 pixel
Output delay <40ms
Detection accuracy ≤0.1°
Processing time <100ms
Detection range azimuth ±60°, elevation ±45°
Video input 1-way HD-SDI digital video, 1-way PAL analog video
Video output 1-way SDI digital video
Communication 1-way RS422
Working voltage DC5V
Environmental Parameter
Operation temperature -20ºC~+50ºC
Storage temperature -30ºC~+60ºC
Vibration-proof GJB 150.16A-2009, A.2.3.11 the 21st class Vessel
Rain-proof GB 4208-2008 IP67
Physical Parameter
Dimension ≤Φ260mm×360mm (H)
Color Navy gray
Weight ≤20kg
Operating voltage DC24V
Power consumption ≤450W
Installation damper is not required. The gimbal is rigidly connected with pedestal. The gimbal has zero graduation line on azimuth direction.

System Composition

JH602-28015 EOSS is provided for patrol boat, used for monitoring, tracking and positioning sea and air targets. While the patrol boat is on mission, the gimbal status and video are transmitted back and displayed on software; also the control commands are sent to gimbal by user friendly software to realize real-time operation and control.

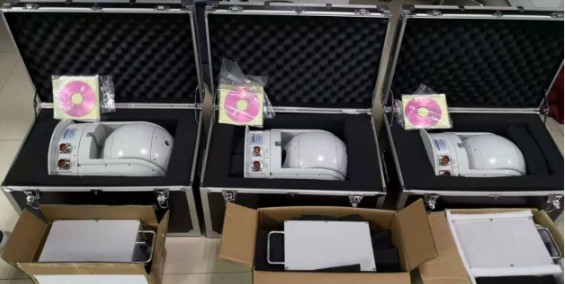

The full system is composed of gimbal, electronic box, and operation and control software.
Fig. 1 EOSS Composition Diagram

30mm~300mm EO/IR Surveillance System Focal Length Ship Borne Cooled MWIR 0

Gimbal

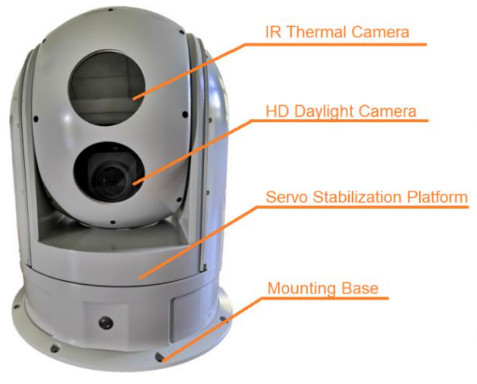

Gimbal is a sensor unit (optical cabinet) slave to a two-axis (elevation and azimuth) gyro stabilized servo platform. Sensor unit is equipped with a high resolution 640×512 MWIR thermal camera with 15~280mm continuous zoom lens and a 1920×1080 HD daylight camera, capable of detection, recognition, identification and tracking target at day and night. The gimbal with pedestal is installed above deck according to practical environment.

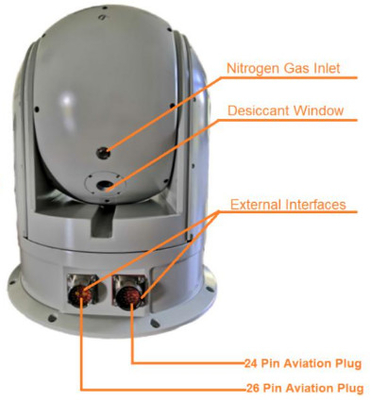

The external interface is 26pin aviation connector.
