Electric Energy Silver Zinc Lithium Thermal Battery Low Self Discharge

Electric Energy Silver Zinc Lithium Thermal Battery Low Self Discharge

  • Electric Energy Silver Zinc Lithium Thermal Battery Low Self Discharge
  • Electric Energy Silver Zinc Lithium Thermal Battery Low Self Discharge
  • Electric Energy Silver Zinc Lithium Thermal Battery Low Self Discharge
Electric Energy Silver Zinc Lithium Thermal Battery Low Self Discharge
Product Details:
Place of Origin: CHINA
Brand Name: JOHO
Certification: GJB
Model Number: XYZ-Series
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Special Packing
Delivery Time: 1 month
Payment Terms: T/T
Supply Ability: 1000pcs/year
Contact Now
Detailed Product Description
Type: Silver Zinc Battery Rechargeable: Non-Rechargeable
Discharge Rate: Medium Discharge Rate Rated Capcity: 600~9000A
Standard Voltage: 1.2V~1.5V Usage: Provide Power To Motor
Electrolyte: Alkaline Activation: 1~1.2s
Diameter: 50mm~250mm
High Light:

energy density battery

,

heat powered battery

Electric Energy Silver Zinc Thermal Batteries Low Self Discharge





Product Description

Silver-Zinc (Ag-Zn) Battery


Feature
High specific power. Low resistance in cell,Low self discharge and hence long shelf lifeGenerate high-power electric energy within a short time,Steady working voltage, Easy application and maintenance,Short time for preparation.

Technical specification
XYZ1
Capacity (Ah) : 1
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life(d): 60
Dimension (mm): 24±0.5×12±0.5×(52)
Dry Weight(kg): ≤0.02
Wet weight (kg): ≤0.03


XYZ2
Capacity (Ah) : 2
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life (d): 60
Dimension (mm): 32±0.5×25.4±0.5×(84)
Dry Weight(kg): ≤0.085
Wet weight (kg): ≤0.11

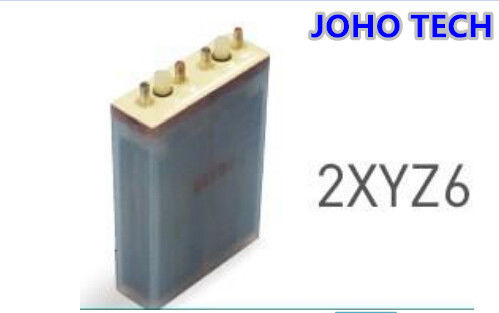

2XYZ6
Technical specification
Capacity (Ah) : 6
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life (d): 60
Dimension (mm): 68.5±0.75×23±0.5×(104)
Dry Weight(kg): ≤0.2
Wet weight (kg): ≤0.27


XYZ15
Capacity (Ah) : 15
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life (d): 60
Dimension (mm): 51±0.5×29+0.5×(117)
Dry Weight(kg): ≤0.24
Wet weight (kg): ≤0.32


XYZ20
Capacity (Ah) : 20
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life (d): 60
Dimension (mm): 64±0.5×24±0.5×(140)
Dry Weight(kg): ≤0.26
Wet weight (kg): ≤0.40


XYG30
Capacity (Ah) : 30
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life(d): 60
Dimension (mm): 64±0.5×34±0.5×(143)
Dry Weight(kg): ≤0.43
Wet weight (kg): ≤0.56


XYG40
Capacity (Ah) : 40
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life(d): 60
Dimension (mm): 64±0.5×39±0.5×(154)
Dry Weight(kg): ≤0.55
Wet weight (kg): ≤0.70


XYZ70
Capacity (Ah) : 70
Working Voltage (V): 1.3~1.6
Storage lifetime (a): 8
Cycle lifetime (cycles): 5~200
Wet-state life(d): 60
Dimension (mm): 86.5±0.5×40±0.5×(154)
Dry Weight(kg): ≤0.9
Wet weight (kg): ≤1.10
