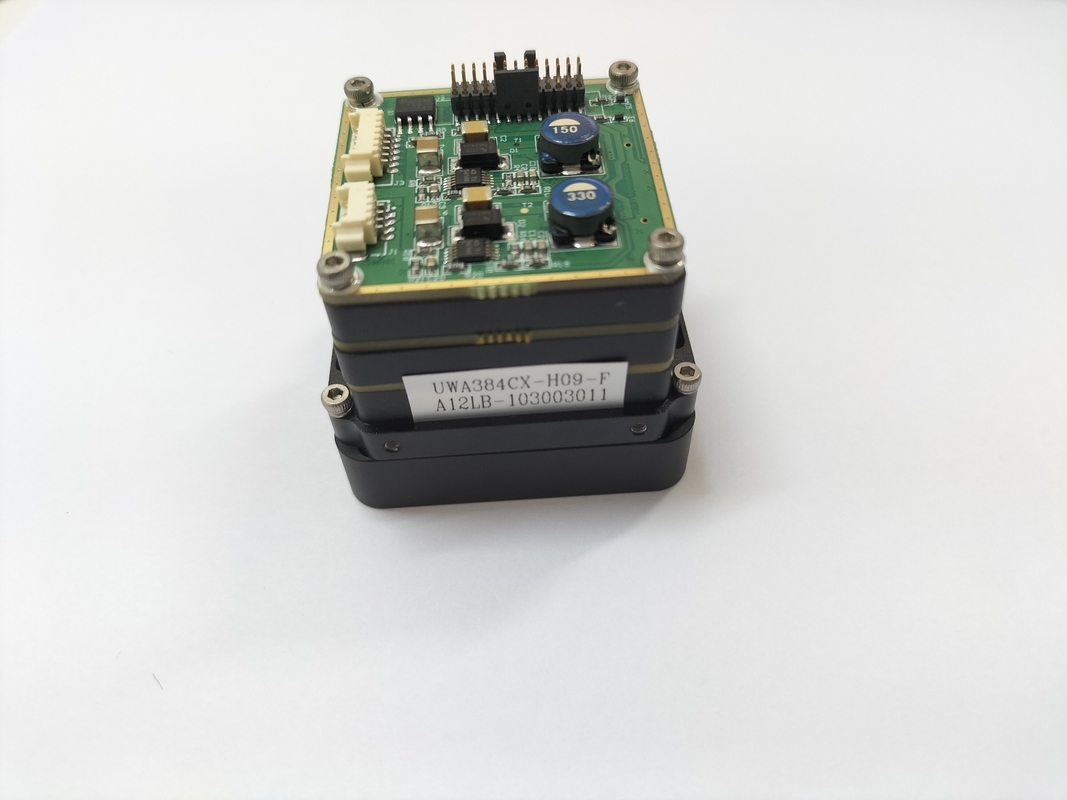

Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core

Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core

  • Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core
  • Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core
  • Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core
Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: UWA384CX-H09-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable

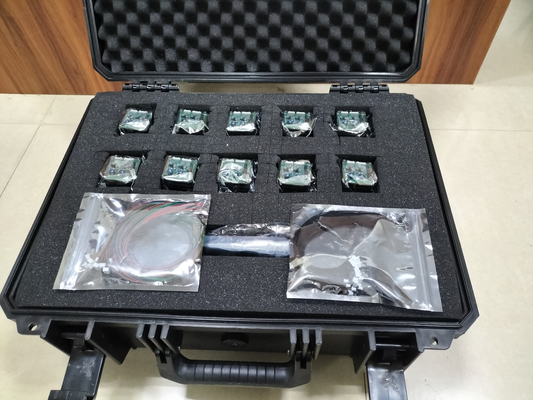

Packaging Details: safety box with vibration proof, water proof
Delivery Time: negotiable
Payment Terms: T/T, L/C
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Features: Miniature Size And Light Weigh Detector Type: VOx Uncooled Infrared LWIR
Pixel: 1280×1024 Array Format: 384×288, 25μm
Spectral Band: 8~14μm Power Supply: DC 6.5V~13V
Communication Interface: RS422 Operating Temperature Range: -40℃~+60℃
Weight: ≤90g

Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core


Features

  • Suit long-range, multi-task search and observation
  • High sensitivity and high resolution
  • Standard interface , easy to integrate
  • Entire enclosure shell protection and compact design

Technical Specification

Model UWA384CX-H09-F
Type VOx Uncooled Infrared LWIR
Array format 384×288, 25μm
Spectral response 8~14μm
Power consumption ≤1.7W@25℃
Power supply DC 6.5V~13V
Time to image ≤20s
Operating temperature range -40℃~+60℃
Storage temperature rage -55℃~+70℃
NETD (@1/f. 25Hz) 40mK
Focus motor driver PWM adjustment
Video output 2 channel Analog video output, PAL formats
Communication interface RS422
Main control function

Manual background calibration, Manual shutter calibration, Polarity setting, 1×~2× continuous zooming, Cross cursor display, Cross cursor position adjustment, Gain adjustment, Brightness adjustment,
Digital Details Enhancement (DDE), Motorized focusing, Reticle display settings, System parameter reset

Five type reticle Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core 0
Size 46mm×48.9mm×42mm
Weight ≤90g


Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core 1Standard Interface 384×288 Uncooled Infrared LWIR Thermal Imaging Core 2
