Product Details:
Place of Origin: China
Brand Name: Joho
Certification: ISO9001
Model Number: JH240-2
Contact Now
Detailed Product Description
Features: Waterproof And Anti-vibration Stabilization Accuracy: ≤0.5mrad
IP Grade: IP67 Power Supply: DC24~36V
IR Camera Detector: Uncooled FPA Dimension: Φ240×365mm
Operating Temperature: ﹣20℃~﹢60℃ Daylight Camera Sensor: 1/2.8’’ CMOS
Application: Search, Tracking, Aiming And Aerial Warning Pixel Size: 17μm×17μm
Range: 5m~4.5km

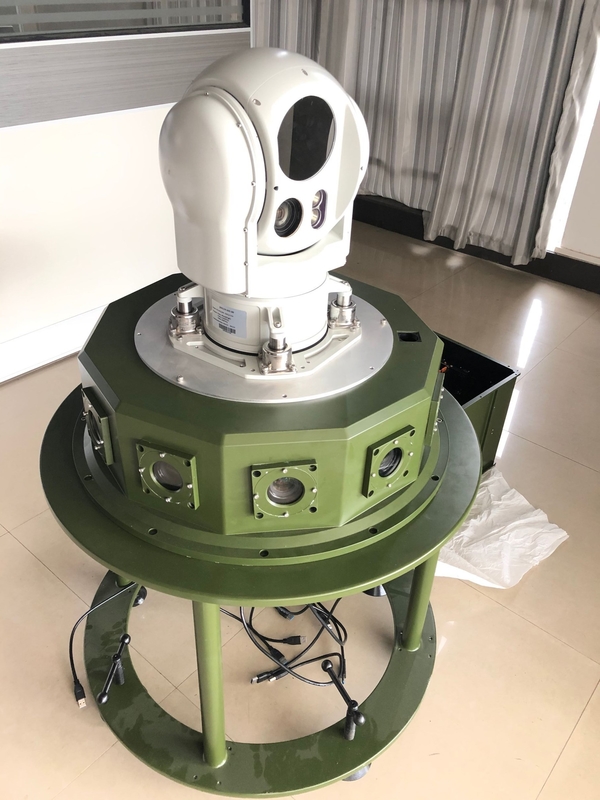

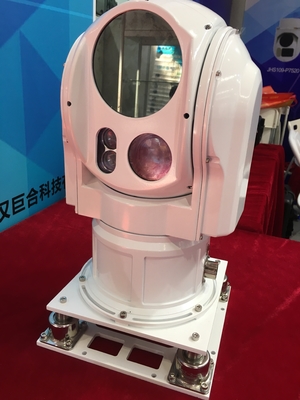

Waterproof and anti-vibration EO/IR Tracking Gimbal



JH240-2 EO/IR Gimbal is applicable on small and medium-sized ship for stable target observation, search, tracking, aiming and aerial warning, etc. The IR optical system with continuous zoom is combined with the complex variable control system, the 2-axis stabilized platform combined with high accuracy gyro and servo control system. The calibration ensures the optical axes alignment of IR camera, daylight camera and laser range finder, which guarantees the high accuracy of the system stabilization and tracking.



Features

  1. Daylight camera with 30× continuous zoom

  2. IR camera with 80mm focal length

  3. 4.5km laser range finder

  4. Manual/auto tracking

  5. High accuracy servo stabilized platform

Technical Specification

SYSTEM PARAMETER
Stabilization platform 2-axis
Range Azimuth:360°continuous
Elevation:-90°~+90°
Max. angular speed Azimuth:≥60°/s
Elevation:≥60°/s
Random error of angular report accuracy ≤0.1°
Stabilization accuracy ≤0.5mrad
IP grade IP67
External interface Power supply:DC24~36V
Communication:Async RS422/RS232
Video:HD-SDI/sync RS422/ network
IR CAMERA
Detector Uncooled FPA
Resolution 640×512
Pixel size 17μm×17μm
Spectral band 8μm~14μm
Focal length 80mm
FOV 7.79°~6.23°
DAYLIGHT CAMERA
Sensor 1/2.8’’ CMOS
Resolution 1920×1080
Optical zoom 30×
Focal length 4.3mm~129mm
FOV 63.7°~2.3°
LASER RANGE FINDER
Wavelength 1550nm
Divergence angle 10mrad
Range 5m~4.5km
Accuracy ±3m(50~1500m),±5m(1500~4500m)
PHYSICAL PARAMETER
Dimension Φ240×365mm

Weight

≤11kg
Color navy gray
ENVIRONMENTAL PARAMETER
Operating temperature ﹣20℃~﹢60℃
Storage temperature ﹣30℃~﹢70℃



Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 0

Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 1

Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 2

Company Profile
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 3

Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 4Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 5Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 6

Customer Distribution

Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 7

Service Process

Waterproof and Anti-vibration EO/IR Tracking Gimbal EO/IR Tracking Gimbal For Small And Medium Sized Ship 8

Products
Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
