    Name: Electro-optical Director Sensor: Thermal Camera, TV Camera, Laser Range Finder
    Thermal Camera Type: Cooled MWIR MCT 320x256 Detection Range: 20km Ship
    Gyro Stablization: 2-axis Gyro Stabilization And Image Stabilization Application: Vessel Surveillance, Auxiliary Navigation

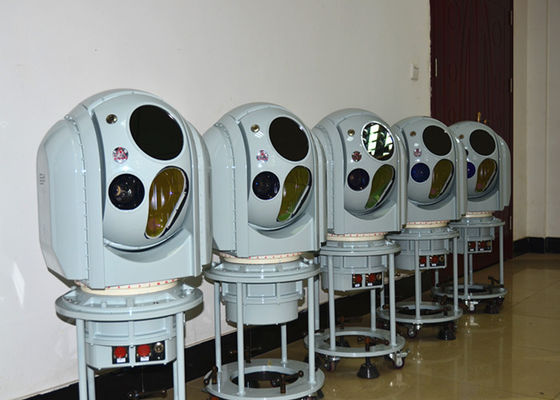

    JH602-300/75 Multi Sensor Electro-Optical Director



    JH602-300/75, as electro-optical director of the ship-borne whole system, it is equipped with a high resolution 640×512 MWIR thermal imager with 300/75mm Dual-FOV lens, a HD daylight camera and an 20km eye-safe laser range finder (ELR), capable of search, capture and tracking target independently for navigation auxiliary or integrate with CMS and slave to CMS, real-time report target position (azimuth and elevation angle) and distance data to CMS, as well as output LOS (line of sight) in the image. It utilizing 2-axis mechanism and built in high accuracy gyro enables video/image stabilization.





    Ideal for Ship





    Function

    • Detect, identify and record surface and air targets at day and night
    • Measuring target distance
    • Manual / Auto tracking target
    • Report target position (azimuth angle and elevation angle) and distance data at high accuracy to CMS
    • Receive target designation data from CMS
    • Buil-in self-test and report self-test result



    Features

    • Integrated in multi-sensor (IR+TV+ELR)
    • Built-in high integrated FPGA & DSP processor platform with fast processing and intelligent algorithm realizes real-time tracking
    • Relative tracking and centroid tracking algorithm for customer option according to the physical circumstance to realize the high quality tracking
    • Built-in high accuracy gyro stabilization to isolate ship disturbance and stabilize LOS.
    • Two axis stable platform combining with high precision gyro and servo control system, ensures good image stability and high tracking precision.
    • Military standard for long life under the severe environment



    Technical specification

    THERMAL CAMERA
    Detector cooled HgCdTe FPA
    Pixel 320*256 ( optional 640*512 higher resolution)
    Spectral band 3.7μm~4.8μm
    FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
    FOV switching time ≤ 1s
    Electronic zoom
    DAY LIGHT CAMERA
    Detector 752*582, 1/3" white/black CCD
    FOV 18°*13.5°~1°*0.75° continuous zoom
    LASER RANGE FINDER
    Wavelength 1.06μm
    Ranging 300m~20km (visibility 23km, 15m*10m target)
    Measurement accuracy ≤ ± 5m
    SERVO
    Stabilization accuracy ≤ 0.2mrad (1σ)
    Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
    TURRET
    Azimuth ≥50°/s
    Elevation ≥50°/s
    Video signal format CCIR PAL standard B/W
    Communication RS422/RS232
    ENVIRONMENTAL
    Operating temperature range -40℃ ~ +50℃
    Storage temperature range -50℃ ~ +70℃
    POWER
    Power Supply DC 24V/15A, DC28V/20A
    Power Consumption

    DC24/96W (avg.)/240W (Max.)

    DC28V/28W(avg.)/70W (Max.)

    PHYSICAL
    Dimension Turret ≤ Φ400× 750
    Control box 500 mm X 230 mm X 87 mm
    Turret Weight ≤ 120kg (including mobile base);
    Control box Weight ≤ 5kg
