Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System

Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System

    • Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System
    • Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System
    • Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System
    • Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System
  • Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System

    Product Details:

    Place of Origin: CHINA
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: D330

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Standard Safety Equipment Case
    Delivery Time: 2months after received payment
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Technology: Infrared Style: Gimbal
    Sensor: MWIR Cooled Thermal Camera HDMI Format: PAL/NTSC
    Sensor Size: 640X512 Kind: Continuous Zoom
    Applications: UAV And Manned Aircraft Target Monitoring Configuration: Thermal Camera,Continuous Zoom TV Camera And Laser Rangefinder
    Feature: Waterproof,weatherproof Certification: ISO9001:2000 SGS
    Effective Distance: 6km Function: Search, Detect And Tracking Target

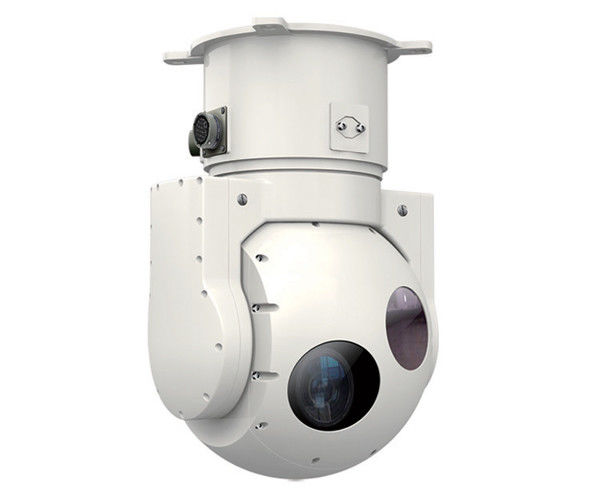

    D330 Miniature Airborne Electro Optical IR Thermal Tracking Pod System



    D330 Miniature Airborne Electro Optical IR Thermal Tracking Pod system is equipped with a high

    performance MWIR cooled thermal camera (640×512 resolution) and day light camera for day and

    night surveillance. Using 2-axis and 4-gimbal mechanism, built-in high precision gyro, its stabilization

    accuracy is up to 30μrad. Easy operation, user is able to independently complete all operation.



    D330 Miniature Airborne Electro Optical IR Thermal Tracking Pod system is suitable

     for various search, observation,tracking,  law enforcement and evidence collection.

    APPLICAITON
    Maritime surveillance ship, coast guard,  fishery administration ship

    TECHNICAL SPECIFICATION


    Thermal camera

    Detector

    MWIR Cooled FPA StirlingCooling

    Pixel

    640×512

    Detection range

    ≥4Km (3m×6m lifeboat)

    Recognition distance

    ≥1.5Km (3m×6m lifeboat)

    Day light camera

    Sensor

    color CCD

    Resolution

    ≥400TVL(720×576)

    Detection range

    ≥6Km (3m×6m lifeboat)

    Recognition distance

    ≥4Km (3m×6m lifeboat)

    Gyro stabilization

    Stabilization accuracy

    ≤30μrad

    Detection scope


    Azimuth: 360°×n continually
    Elevation: +110°~-20°(straight down is 0°)

    Physical

    Dimension

    330mm×510mm (H)

    Weight

    ≤32Kg

    Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System





    Miniature Shipborne / Airborne 2-axis Electro Optical IR Thermal Tracking Pod System
