Long Range Electro-Optical Search and Targeting System With Cooled IR Camera

Long Range Electro-Optical Search and Targeting System With Cooled IR Camera

  • Long Range Electro-Optical Search and Targeting System With Cooled IR Camera
  • Long Range Electro-Optical Search and Targeting System With Cooled IR Camera
  • Long Range Electro-Optical Search and Targeting System With Cooled IR Camera
Long Range Electro-Optical Search and Targeting System With Cooled IR Camera
Product Details:
Place of Origin: Wuhan China
Brand Name: Joho
Certification: ISO9001:2000
Model Number: JH602-300/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 2-3months after received payment
Payment Terms: T/T, L/C, D/P
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Features: Waterproof And Anti-vibration Sensors: IR+Daylight Camera+LRF
Stabilization Accuracy: ≤ 0.2mrad (1σ) Electronic Zoom:
Pixel: 320x256 ( Optional 640x512 Higher Resolution) Communication: RS422/RS232
Power Supply: DC24V/15A , DC28V/20A Dimension Turret: ≤ Φ400× 750
Turret Weight: ≤ 120kg (including Mobile Base) Functions: Search And Detect, Recognize
Operating Temperature: -40℃ ~ +50℃

Long Range Electro-Optical Search and Targeting System With Cooled IR Camera





JH602-300/75 is a long range Electro-optics Search and Tracking System equipped with a high performance MWIR cooled HgCdTe thermal camera( optional 640×512 higher resolution), continuous zoom TV camera and laser range finder, which makes it capable of searching target at day and night, as well as recognition, tracking, ranging and aiming target, real-time output target position and distance data for navigation and early warning. It is mainly applied to different moving carriers, such as aircraft, vessel and ground equipment.



Functions

  • Real-time output and display the image at the sight line area
  • Quick search and detect, recognize and distinguish at specific target
  • System self-test

  • Real-time report the position informations (target azimuth, pitch distance and angular velocity )

  • Gyro stability augmentation function , insulating carrier disturbance, line of sight stablization



Specifications

THERMAL CAMERA
Detector cooled HgCdTe FPA
Pixel 320*256 ( optional 640*512 higher resolution)
Spectral band 3.7μm~4.8μm
FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
FOV switching time ≤ 1s
Electronic zoom
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 18°*13.5°~1°*0.75° continuous zoom
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~20km (visibility 23km, 15m*10m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥50°/s
Pitch ≥50°/s
Video signal format CCIR PAL standard B/W
Communication RS422/RS232
ENVIRONMENTAL
Operating temperature range -40℃ ~ +50℃
Storage temperature range -50℃ ~ +70℃
POWER
Power Supply DC 24V/15A, DC28V/20A
Power Consumption

DC24/96W (avg.)/240W (Max.)

DC28V/28W(avg.)/70W (Max.)

PHYSICAL

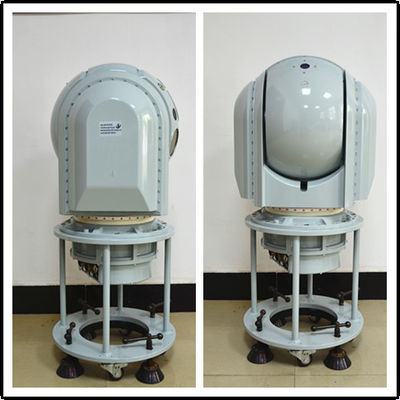

Dimension Turret ≤ Φ400× 750

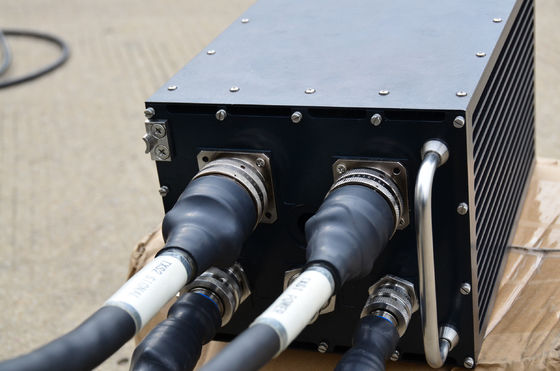

Control box 500 mm X 230 mm X 87 mm
Turret Weight ≤ 120kg (including mobile base)
Control box Weight ≤ 5kg
