Name: 8μm~14μm High Precision Gimbal Small Size for USV
Brand: JOHO
SKU: JHP103-M145B
Rating: 4.9 (156 reviews)

Home Products Electro Optical Targeting System

8μm~14μm High Precision Gimbal Small Size for USV

Product Details:

Place of Origin:	China
Brand Name:	JOHO
Certification:	ISO9001
Model Number:	JHP103-M145B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Packing
Delivery Time:	2 months after payment
Supply Ability:	100units/Year

Contact Now

Detailed Product Description

Features:	Shock And Vibration Resistance	Application:	Navigation, Surveillance, Rescue
Customized:	Support Customized	Platform:	Two-axis
Detector:	1/2.8" CMOS	Pixel:	1920x1080
Focal:	35mm	Weight:	3.8kg
Spectral Band:	8μm~14μm	Power Supply:	DC 24V/3A
High Light:	14um High Precision Gimbal , USV High Precision Gimbal

8μm~14μm High Precision Small Size Affordable Gimbal for USV

Features and Function

Flexible sensors for various tasks
Small size, light weight and low power consumption
Two-axis stable, high precision gyroscope and servo control system realize full coverage reconnaissance.
Network communication interface. Wireless communication enables the ground station control framework and supports video/image return.
IP66, shock and vibration resistance, even in harsh environments can ensure a longer service life.

Technical Specification

JHS103-M145A Small Size and Affordable Gimbal
Model A: Thermal Camera
Detector	Uncooled FPA	Pixel	640×512
Spectral band	8μm~14μm	Focal length	35mm
Model B: Day Light Camera
Detector	1/2.8" CMOS, 23x	Resolution	1920×1080
System Parameter
Azimuth	360°continuous	Elevation	-20°~ +75°
Stabilization	≤0.5mrad	Protection	IP67
Power supply	DC 24V/3A	Power consumption	≤30W
Dimension	Φ138m×224mm	Weight	≤4kg

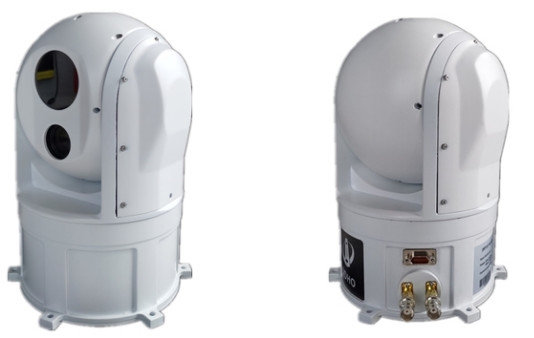

8μm~14μm High Precision Gimbal Small Size for USV 0

Company Profile
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

Customer Distribution

Service Process

Products
Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
