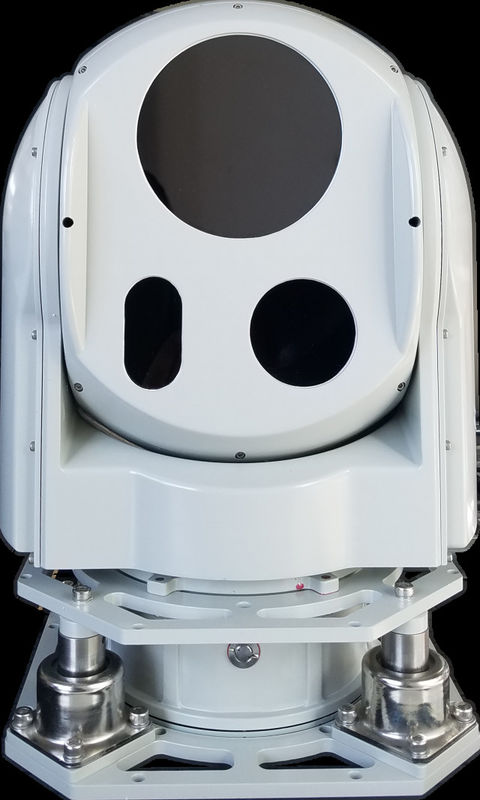

IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V

IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V

  • IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V
  • IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V
  • IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V
  • IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V
  • IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V
IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V
Product Details:
Place of Origin: China
Brand Name: Joho
Certification: ISO9001
Model Number: JH240-2
Contact Now
Detailed Product Description
Features: Low Power Consumption,high Accuracy Stabilization Platform: 2-axis
Application: Small And Medium-sized Ship Sensors: IR+Daylight Camera+LRF
IP Grade: IP67 IR Camera Detector: Uncooled FPA
Spectral Band: 8μm~14μm Optical Zoom: 30×
Dimension: Φ240×365mm Operating Temperature: ﹣20℃~﹢60℃
FOV: 63.7°~2.3°
High Light:

Servo Stabilized Platform IR Targeting System

,

DC24 IR Targeting System

,

IP67 EO Targeting System

IP67 High Accuracy Servo Stabilized Platform EO/IR Targeting System DC24~36V



JH240-2 EO/IR Gimbal is applicable on small and medium-sized ship for stable target observation, search, tracking, aiming and aerial warning, etc. The IR optical system with continuous zoom is combined with the complex variable control system, the 2-axis stabilized platform combined with high accuracy gyro and servo control system. The calibration ensures the optical axes alignment of IR camera, daylight camera and laser range finder, which guarantees the high accuracy of the system stabilization and tracking.



Features

  1. Daylight camera with 30× continuous zoom

  2. IR camera with 80mm focal length

  3. 4.5km laser range finder

  4. Manual/auto tracking

Technical Specification

SYSTEM PARAMETER
Stabilization platform 2-axis
Range Azimuth:360°continuous
Elevation:-90°~+90°
Max. angular speed Azimuth:≥60°/s
Elevation:≥60°/s
Random error of angular report accuracy ≤0.1°
Stabilization accuracy ≤0.5mrad
IP grade IP67
External interface Power supply:DC24~36V
Communication:Async RS422/RS232
Video:HD-SDI/sync RS422/ network
IR CAMERA
Detector Uncooled FPA
Resolution 640×512
Pixel size 17μm×17μm
Spectral band 8μm~14μm
Focal length 80mm
FOV 7.79°~6.23°
DAYLIGHT CAMERA
Sensor 1/2.8’’ CMOS
Resolution 1920×1080
Optical zoom 30×
Focal length 4.3mm~129mm
FOV 63.7°~2.3°
LASER RANGE FINDER
Wavelength 1550nm
Divergence angle 10mrad
Range 5m~4.5km
Accuracy ±3m(50~1500m),±5m(1500~4500m)
PHYSICAL PARAMETER
Dimension Φ240×365mm

Weight

≤11kg
Color navy gray
ENVIRONMENTAL PARAMETER
Operating temperature ﹣20℃~﹢60℃
Storage temperature ﹣30℃~﹢70℃
