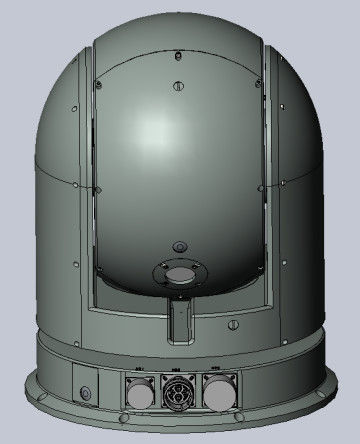

35× Continuous Zoom EO / IR Search And Tracking Gimbal

35× Continuous Zoom EO / IR Search And Tracking Gimbal

  • 35× Continuous Zoom EO / IR Search And Tracking Gimbal
  • 35× Continuous Zoom EO / IR Search And Tracking Gimbal
  • 35× Continuous Zoom EO / IR Search And Tracking Gimbal
35× Continuous Zoom EO / IR Search And Tracking Gimbal
Product Details:
Place of Origin: China
Brand Name: Joho
Certification: ISO9001
Model Number: JH280-2
Contact Now
Detailed Product Description
Features: Manual/auto Tracking Function Range Elevation: -90°~+60°
Stabilization Accuracy: ≤0.5mrad Power Supply: DC24V
Detector: Uncooled FPA IR Focal Length: 120mm(electronic Focus)
Spectral Band: 8μm~14μm Sensor: 1/2.8’’ CMOS
FOV: 61.2°×2.0° Application: Military And Civilian Fields
Function: Search, Observation And Tracking
High Light:

IR Search And Tracking Gimbal

,

35x Continuous Zoom EO Tracking Gimbal

,

DC24V IR Search And Tracking Gimbal

35× Continuous Zoom EO/IR Search And Tracking Gimbal

JH280-2 EO/IR gimbal is an optical - mechanical - electrical integrated search and tracking system, equipped with a 35× continuous zoom daylight camera, an uncooled IR camera with 120mm lens, able to be controlled by the joystick/PC to change the altitude. It has the data return functions including the working mode, azimuth and elevation angle, etc. It is mainly used for the search, observation and tracking of sea surface targets and aerial targets, as well as real-time video and image output. This gimbal is widely applicable for military and civilian fields of public security, warning, marine activities, etc.

Features

  1. Daylight camera with 35× continuous zoom
  2. Uncooled IR camera with 120mm focal length
  3. Manual/auto tracking function

Technical Specification

SYSTEM PARAMETER
Stabilization platform 2-axis
Range Azimuth:360°continuous
Elevation:-90°~+60°
Max. angular speed Azimuth:≥90°/s
Elevation:≥90°/s
Random error of angular report accuracy ≤0.5°
Stabilization accuracy ≤0.5mrad
IP grade IP67
External interface Power supply:DC24V
Communication:RS422
Video:HD-SDI
IR CAMERA
Detector Uncooled FPA
Resolution 640×512
Pixel size 17μm×17μm
Spectral band 8μm~14μm
Focal length 120mm(electronic focus)
FOV 5.2°×4.16°
DAYLIGHT CAMERA
Sensor 1/2.8’’ CMOS
Resolution 1920×1080
Optical zoom 35×
Focal length 6mm~210mm
FOV 61.2°×2.0°
PHYSICAL PARAMETER
Dimension Φ280mm×375mm
Weight ≤16.9kg
Color navy gray
ENVIRONMENTAL PARAMETER
Operating temperature ﹣20℃~﹢60℃
Storage temperature ﹣30℃~﹢65℃
