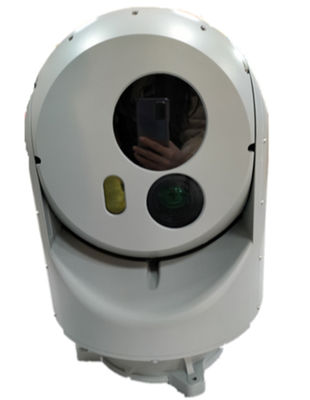

JH601-100 Vehicle-borne EO/IR Surveillance And Tracking System (EOTS)





Introduction

JH601-100 vehicle-borne electro-optical surveillance and tracking system is a highly optical-mechanical-electro integrated system equipped with a HD 1080p 30× daylight camera, an uncooled LWIR thermal camera and a 5km laser range finder. The system is mainly applied for ground and air target search and observation, able to output video and image in real time and track targets, which is widely deployed in military and civil application of police and warning.



Function

  • 2-axis (azimuth and elevation) stabilization, high accuracy gyro and servo control system implement full coverage reconnaissance, as well as support day and night surveillance.
  • Able to receive laser warning and target designation.
  • Video tracking function.
  • High accuracy correction ensures the optical axis alignment of thermal camera, daylight camera and laser range finder.
  • Target designation able to enter into the FOV of gun sight.
  • Fully sealed, water-proof, vibration resistance, shock resistance, long lifetime under harsh environment.

Technical Specifications

System Specifications


Max. Angular speed azimuth: ≥30°/s; elevation: ≥30°/s

Rotation range



azimuth: 360°continuous, left - right +

Elevation: +90°~-90° (horizontal forward is 0°, up+ down -)

Random error of angular accuracy ≤0.5°
Stabilization accuracy 0.5mrad (1σ)

Thermal Camera


Detector LWIR uncooled Vox FPA
Pixel 640×480, 17μm
Spectral band 8μm~14μm
Focal length 100mm, athermalization lens
FOV 6.2°×5°
E-zoom ×2, ×4

HD Daylight Camera


Detector 1920×1080,colorful
Focal Length 30× optical zoom,10-300mm
Zooming time of full range <6s
Frame frequency 30fps
Optical axis aiming ≤5 pixels(For full focal length optical axis deviation, long focal length as the base)
Optical axis repetition NWOF≤2 pixels

Laser Range Finder


Wavelength 1.06μm
Range building 100-5000m, vehicle 2300m, human 1300m
Measurement accuracy ≤±5m
Accuracy ≥98%
Repetition frequency 1Hz

Video Tracker


Tracking window automatic moving to any position and aiming target
Camera maximum resolution 1920×1080, 60fps
Minimum target recognition accuracy 3×3 pixel
Minimum SNR 4
Tracking speed ≤34 pixel/frame
Start-up time ≤10s
Output video SDI video

Physical Parameters


Dimension Gimbal: Φ340mm×500mm (H)
Control box (L×W×H): 270mm×180mm×260mm/108mm (with / without joystick height)
Weight

Gimbal: ≤26.5kg;

Control box: ≤2.7kg

Color



Gimbal: army green;

Control box: navy gray

Environmental Parameters


Operation temperature -40℃~+60℃
Storage temperature -50℃~+70℃
Waterproof

Gimbal: IP67;

Control box: IP66


Gimbal

DC 28V, range 18V~36V;

Power consumption: stable power consumption: ≤420W

Control box

DC 12V, range 9V~36V;

Power consumption: ≤4W
