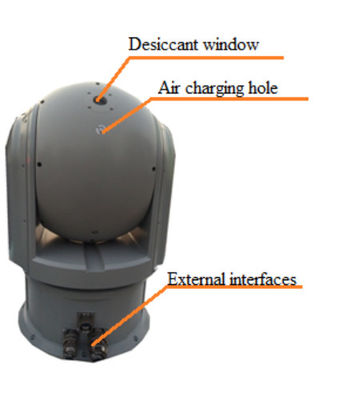

Two Axis 640x480 Uncooled FPA Electro Optical Tracking System For UAV

Two Axis 640x480 Uncooled FPA Electro Optical Tracking System For UAV

  • Two Axis 640x480 Uncooled FPA Electro Optical Tracking System For UAV
  • Two Axis 640x480 Uncooled FPA Electro Optical Tracking System For UAV
  • Two Axis 640x480 Uncooled FPA Electro Optical Tracking System For UAV
Two Axis 640x480 Uncooled FPA Electro Optical Tracking System For UAV
Product Details:
Place of Origin: China
Brand Name: Joho
Certification: ISO9001
Model Number: JHP307-1-M200A1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: standard packaging
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 500 pcs/year
Contact Now
Detailed Product Description
Stabilized Platform: 2-axis Detector: 640×480 Uncooled FPA
NETD: ≤50mK(F/1) Resolution: 1920×1080
Azimuth: 360º Continuous Communication: RS232
Working Temperature: ﹣20℃~﹢60℃ Power Supply: DC24V
Laser Divergence Angle: 10mrad Application: Ground And Sea Target Search, Observation, Tracking
High Light:

UAV Electro Optical Tracking System

,

Two Axis Electro Optical Tracking System

,

UAV Electro Optical Targeting System

2-axis 640×480 Uncooled FPA Electro-optical Tracking Gimbal for UAV



Introduction



JHP307-1-M200A1 EO/IR gimbal is equipped with HD daylight camera with 30× continuous zoom lens, a LWIR uncooled thermal camera and a 2km eye-safe laser range finder, capable of ground and sea target search, observation, tracking, as well as real-time video and image output. This gimbal has been widely deployed in military field, public security, coastal surveillance, maritime and other civilian fields.



Function

  • Azimuth and elevation 2-axis stabilized platform, integrated with high accuracy gyro and servo control system, to realize full coverage reconnaissance, support both day and night observation.
  • Compact structure, strong carrier adaptability
  • High accuracy calibration to ensure the alignment of thermal camera and daylight camera.
  • Capable of data return such as working mode, azimuth angle, elevation angle, etc.
  • Fully-sealed high level waterproofness, optical-mechanical-electrical integrated design with strong vibration and shock resistance, able to be used in harsh environment with long life time.

Technical Specification



Thermal Camera
Detector 640×480 Uncooled FPA
Pixel size 17μm
Spectral band 8um~14μm
Focal length 50mm (athermalization)
NETD ≤50mK(F/1)
Frame frequency ≥25Hz
Video interface PAL analog video
Day Light Camera
Detector 1/2.8’’ CMOS
Resolution 1920×1080
Optical zoom 30× continuous zoom
Focal length 4.3mm~129mm
HFOV 63.7°~2.3°
Video interface HD-SDI
Frame frequency 30Hz
Laser Range Finder ( Optional)
Wavelength 905nm
Laser divergence angle 10mrad
Measurement resolution 0.1m
Measurement range 5m~2000m
Measurement accuracy ±5m
Response time 0.3s~1.5s
Frame frequency 2Hz
Communication interface TTL
Power supply DC5V
System Parameter
Stabilized platform 2-axis
Stabilization accuracy ≤0.3mrad(1σ)
Azimuth 360º continuous
Elevation +60°~-90°
Power supply DC24V
Power consumption ≤12W
Communication RS232
Dimension Φ200mm×350mm
Weight <6Kg
Color Gray
Communication RS232
Video interface

HD-SDI (daylight camera),

PAL analog video (IR)

Working temperature ﹣20℃~﹢60℃
Storage temperature ﹣30℃~﹢70℃
IP IP66



Company Profile

Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.
