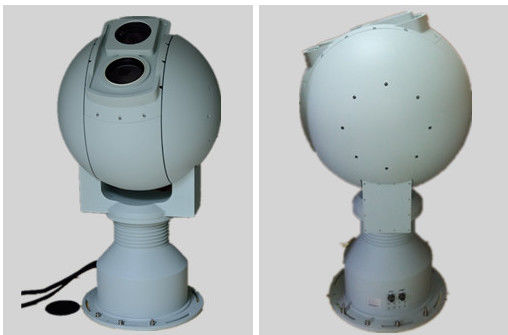

324x256 Uncooled VOx FPA Electro Optical Tracking System For Coastal Surveillance

324x256 Uncooled VOx FPA Electro Optical Tracking System For Coastal Surveillance

  • 324x256 Uncooled VOx FPA Electro Optical Tracking System For Coastal Surveillance
324x256 Uncooled VOx FPA Electro Optical Tracking System For Coastal Surveillance
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001:2000, SGS
Model Number: JH320-150/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case with wheels
Delivery Time: 2-3months after received payment
Payment Terms: T/T , D/A
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Detector: LWIR Uncooled VOx FPA Horizontal Resolution: 324x256
Configuration: Thermal Camera And Day Light Camera Frequency: 25Hz
Preset Accuracy: ≤ 0.1° Application: Two Working Mode Of Day Mode And Night Mode
NETD: ≤50mK@F1.0,300K Resolution: 1080p,Support Three Bit Stream
Pan Range: 360° Size: 605mm×605mm×1160mm(L×W×H)
High Light:

Coastal Surveillance Electro Optical Tracking System

,

324x256 Electro Optical Tracking System

,

Uncooled VOx FPA Electro Optic Systems



JH320-150/75 Coastal Surveillance Intelligent PTZ Thermal Camera System



1. Introduction

Coastal Surveillance Intelligent PTZ Thermal Camera System is widely used in occasions that require real-time monitoring at night, in harsh environments, long distances, large areas, and concealment. The JH320-150/75 border and coastal defense photoelectric tracking system is a night vision product with independent intellectual property rights. The device has two working modes: day mode and night mode. The day mode uses visible light camera imaging, and the night mode uses infrared thermal imaging camera.Due to aluminum alloy material, reinforced design of the whole machine, it can resist to strong wind, salt spray, high and low temperature, etc.

2. Features

  • Adopting the integrated design of long-distance visible light and dual-band cameras for warning thermal imaging, monitoring all day and night.
  • Support visible light lens, real-time rotation of azimuth, lens focal length, lens focus position.
  • Support lens zoom and focus speed multi-level adjustable.
  • Support line scanning, positioning and other functions.
  • IP66 Protection level for long time outdoor use.
  • Modular design, easy for repair and upgrade.



Specifications:



THERMAL CAMERA

Detector

Uncooled VOx FPA

Pixel

324×256

Spectral band

8~14μm

FOV

3.1°×2.4°~15.2°×12.2°

IFOV

0.17~0.83mrad

NETD

≤50mK@F1.0,300K

DAYLIGHT CAMERA

Focal length

12.5~750mm,60X Zoom

FOV

0.5°~28.7°

F#

F3.8~F22.C

Sensor

1/1.8''Progressive Scan CMOS

Video Control

AGC, AWB, support day/night mode switch auto/manual

Resolution

1080p,Support three bit stream

TURRET TECHNICAL PARAMETERS

Pan Range

360°

Tilt Range

-80°~+80°

Pan Speed

0.1°~30°/s

Tilt Speed

0.1°~25°/s

Acceleration

Max:40°/s2

Protocol

Pelco-D,Pelco-P

Baud Rate

2400/4800/9600/19200 bps

ENVIRONMENTAL

Operating Temperature

-40°C~+60°C

Storage Temperature

-50°C~+70°C

Protection

IP66

Salt Fog

PH6.5~7.2, 48 hours continuous spray

POWER

Power Supply

DC24V

Consumption

≤180W

PHYSICAL

Weight

≤110kg

Size

605mm×605mm×1160mm(L×W×H)

Application Environment

Outdoor
