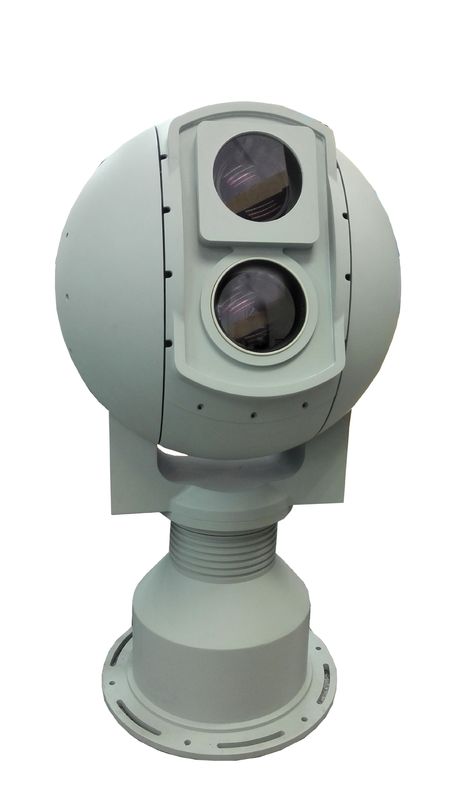

Coastal Surveillance Intelligent Electro Optical Tracking System PTZ Infrared Camera System

JH320-150/75 Coastal Surveillance Intelligent PTZ Thermal Camera System

1. Introduction

Coastal Surveillance Intelligent PTZ Thermal Camera System is widely used in occasions that require real-time monitoring at night, in harsh environments, long distances, large areas, and concealment. The JH320-150/75 border and coastal defense photoelectric tracking system is a night vision product with independent intellectual property rights. The device has two working modes: day mode and night mode. The day mode uses visible light camera imaging, and the night mode uses infrared thermal imaging camera.
Using infrared thermal imaging camera imaging night vision technology, it has the characteristics of clear imaging, good concealment, and not limited by the light source. The visible light camera and the infrared thermal imager are effectively combined. The maximum visible distance of the camera is 10 kilometers, and the thermal imager can detect people at 3,600 meters away, which can realize continuous monitoring day and night. This product also uses a number of unique key technologies in materials and processing. The shell is made of high-strength aluminum alloy and stainless steel, and is specially reinforced and sealed. It can be widely used at night, harsh environments, long distances, and large areas. , Concealed real-time monitoring occasions.

2. Features

• Adopting the integrated design of long-distance visible light and dual-band cameras for warning thermal imaging, monitoring all day and night.
• Support visible light lens, real-time rotation of azimuth, lens focal length, lens focus position.
• Support lens zoom and focus speed multi-level adjustable.
• The repetitive positioning accuracy of the turntable is high, less than 0.1°.
• Support line scanning, positioning and other functions.
• Aluminum alloy material, reinforced design of the whole machine, resistant to strong wind, salt spray, high and low temperature, etc.
• IP66 Protection level for long time outdoor use.
• Modular design, easy for repair and upgrade.

Specifications:
