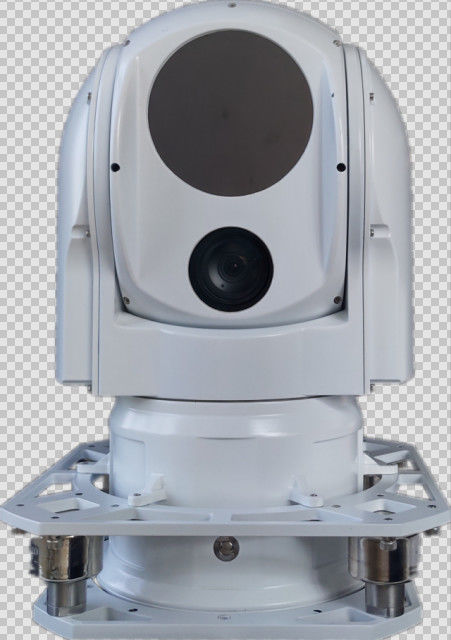

JHP320- B220 Electro Optical Infrared Camera Monitoring System Airborne Dual Sensor

JHP320- B220 Electro Optical Infrared Camera Monitoring System Airborne Dual Sensor

    • JHP320- B220 Electro Optical Infrared Camera Monitoring System Airborne Dual Sensor
    • JHP320- B220 Electro Optical Infrared Camera Monitoring System Airborne Dual Sensor
  • JHP320- B220 Electro Optical Infrared Camera Monitoring System Airborne Dual Sensor

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001
    Model Number: JHP320-B220

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Standard Safety Equipment Case
    Delivery Time: negotiation
    Payment Terms: T/T, L/C,, Western Union, MoneyGram
    Supply Ability: 50Sets/Year
    Contact Now
    Detailed Product Description
    Function: Searching, Observation, Tracking And Positioning Type: Day Light Camera Sensor
    Application: Navigation, Surveillance, Rescue, Searching Customized: Support Customized
    Platform: Two-axis Detector: 1/2.8" CMOS
    Pixel: 1920x1080 Focal Length: 4.3mm~129mm (30x Optical Zoom)
    Focus: Auto/Semi-Auto/Manual Communication: RS232
    Power Supply: DC 12V

    JHP320-B220 Airborne Dual - Sensor Electro Optical Infrared Camera Monitoring System

    Description

    JHP320-B220 dual-sensor gimbal is small aircraft, aerostat and other airborne platforms for target surveillance, applicable on UAV,tracking and positioning. The system is an optical-mechanical-electrical integration, configured with30×continuous zoom HD 1080p day light camera,80mm uncooled thermal camera.



    Features and Functions
    1) Azimuth and elevation 2-axis stabilized platform, integrated with high accuracy gyro and servo control system, to realize full coverage reconnaissance, support both day and night observation.
    2) Video tracking capability with manual locking and tracking;
    3) Small size, light weight, and compact structure, strong carrier adaptability, low consumption, and high cost-effectiveness.
    4) High accuracy calibration to ensure the alignment of thermal camera and daylight camera.
    5) Capable of data return such as working mode, azimuth angle, elevation angle,etc.



    Technical Specification

    THERMAL CAMERA
    Detector 640*512 Uncooled FPA
    Spectral band 8μm~14μm
    Resolution 17mm x 17mm
    Focal length 80mm
    DAY LIGHT CAMERA
    Detector 1/2.8" CMOS
    Focal length 4.3~129mm, 30x
    Resolution 1920×1080
    SERVO
    Stabilization ≤0.5mrad(1σ)
    Turret direction range Azimuth:360° continuous; Elevation:+20°~-90° (Customizable)
    TURRET MAXIMUM ANGLE SPEED
    Azimuth ≥30°/s
    Pitch ≥30°/s
    INTERFACE
    Video Out HDMI
    Communication RS232
    ENVIRONMENTAL
    Operating temperature range -20℃ ~ +50℃
    Storage temperature range -30℃ ~ +60℃
    Tracking
    Tracking speed ≥2.5FOV/S
    Min tracking contrast ratio 5%
    Dynamic tracking accuracy superior to 1mrad
    POWER
    Power Supply DC 12V
    Power Consumption ≤120W (steady); ≤360W(peak)
    PHYSICAL
    Dimension Turret ≤ Φ240× 350mm
    Turret Weight ≤ 10kg
    Color Customizable
    Performance (Theoretic Value under Johnson DRI)
      Vehicle (2.3×2.3m) Human (1.7×0.5m)
    Detection 5400m 1100m
    Recognition 1800m 400m
    Identification 900m 200m
