|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Aluminum Alloy Safety Case with vibration-proof, water-proof|
|Payment Terms:||T/T, L/C, D/P|
|Name:||EOTS||Sensor:||Thermal Camera, TV Camera, Laser Range Finder|
|Thermal Camera Type:||Cooled HgCdTe FPA||Pixel:||640x512|
|Focal Length:||300/75mm||Application:||Vessel Surveillance, Auxiliary Navigation|
|Wavelength:||1.06um||Range:||0.3-20km(visibility 23km, 15mx10m Target)|
eo ir system,
Long Range EOTS

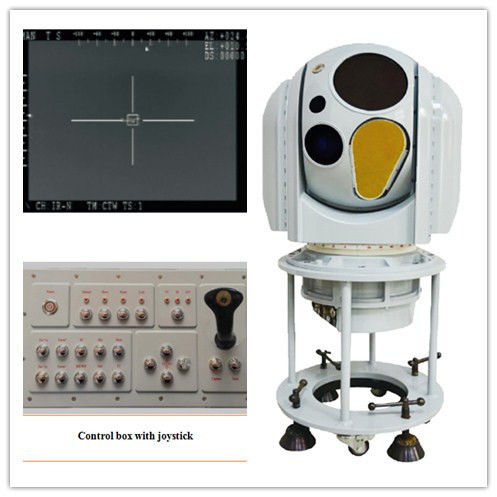

JH602-300/75 Multi Sensors Long Range Electro-Optical Tracking Systems EOTS
EOT is based on a stabilized platform that provides housing for an IR thermal camera, TV camera and an laser range finder. It receives target designation from CMS, and automated start acquisition, recognition and tracking target, as well as real-time output target position at high accuracy. It can be used for navigation auxiliary at night or as electro-optical director of whole defense system.
Ideal for Ship
Features & Function
1. Targets acquisition and tracking by passive EO sensor, without any electromagnetic emission, excellent stealth performance;
2. Outstanding detection low altitude and sea-skimming targets but it is blind area for radar;
3. Two axis stable platform with high precision gyro and servo control system, insulate carrier disturbance and stabilize the line of sight (LOS).
4. Auto and manual target tracking, and high accuracy tracking performance
5. Real-time report angular and distance of the captured target relative to the reference axis.
6. Military-class component with high reliability enables long life under the severe environment.
7. Full-sealing and high level waterproof optic-mechanical-electro integrated design matches the military demand.
