Shipborne Multi Sensor Infrared Camera System Electro Optical Infrared

Shipborne Multi Sensor Infrared Camera System Electro Optical Infrared

Shipborne Multi Sensor Infrared Camera System Electro Optical Infrared

Product Details:

Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH602-300/75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Aluminum Alloy Safety Case with vibration-proof, water-proof
Delivery Time: 6months
Payment Terms: T/T, L/C, D/P
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Name: Shipborne Multi-sensor Infrared Camera System Sensor: Thermal Camera, TV Camera, Laser Range Finder
Thermal Camera Type: Cooled MWIR Detection Range: 20km Ship
Gyro Stablization: 2-axis Gyro Stabilization And Image Stabilization Application: Vessel Surveillance, Auxiliary Navigation
Detector: Cooled HgCdTe FPA Wavelength: 1.06μm

Shipborne EOS Multi Sensors Electro-Optical Infrared Camera Director System

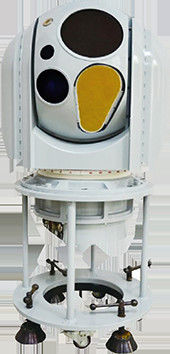

JH602-300/75, as electro-optical director of the ship-borne whole system, it is equipped with a high resolution 640×512 MWIR thermal imager with 300/75mm Dual-FOV lens, a HD daylight camera and an 20km eye-safe laser range finder (ELR), capable of search, capture and tracking target independently for navigation auxiliary or integrate with CMS and slave to CMS, real-time report target position (azimuth and elevation angle) and distance data to CMS, as well as output LOS (line of sight) in the image. It utilizing 2-axis mechanism and built in high accuracy gyro enables video/image stabilization.





Function

  • Detect, identify and record surface and air targets at day and night
  • Measuring target distance
  • Manual / Auto tracking target
  • Report target position (azimuth angle and elevation angle) and distance data at high accuracy to CMS
  • Receive target designation data from CMS
  • Buil-in self-test and report self-test result



Features

  • Integrated in multi-sensor (IR+TV+ELR)
  • Built-in high integrated FPGA & DSP processor platform with fast processing and intelligent algorithm realizes real-time tracking
  • Relative tracking and centroid tracking algorithm for customer option according to the physical circumstance to realize the high quality tracking
  • Built-in high accuracy gyro stabilization to isolate ship disturbance and stabilize LOS.
  • Two axis stable platform combining with high precision gyro and servo control system, ensures good image stability and high tracking precision.
  • Military standard for long life under the severe environment



Technical specification

THERMAL CAMERA
Detector cooled HgCdTe FPA
Pixel 320*256 ( optional 640*512 higher resolution)
Spectral band 3.7μm~4.8μm
FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
FOV switching time ≤ 1s
Electronic zoom
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 18°*13.5°~1°*0.75° continuous zoom
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~20km (visibility 23km, 15m*10m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
TURRET
Azimuth ≥50°/s
Elevation ≥50°/s
Video signal format CCIR PAL standard B/W
Communication RS422/RS232
ENVIRONMENTAL
Operating temperature range -40℃ ~ +50℃
Storage temperature range -50℃ ~ +70℃
POWER
Power Supply DC 24V/15A, DC28V/20A
Power Consumption

DC24/96W (avg.)/240W (Max.)

DC28V/28W(avg.)/70W (Max.)

PHYSICAL
Dimension Turret ≤ Φ400× 750
Control box 500 mm X 230 mm X 87 mm
Turret Weight ≤ 120kg (including mobile base);
Control box Weight ≤ 5kg
