UAV Electro Optical Tracking System Real Time Imaging And Reconnaissance Proposal

UAV Electro Optical Tracking System Real Time Imaging And Reconnaissance Proposal

Application
Public security emergency investigation, fire rescue, military maneuver, mapping, geological survey, disaster monitoring, meteorological observation, air traffic control, border control, communication relay, pipeline investigation, power line patrol and TV aerial photography.

Benefits and Features
Modular design enables flexible and fast assembly. Modules are able to be removed as request to increase endurance time.
Fully sealed waterproof ; wind resistance up to >6 gale.
HD 1080P real-time imaging transmission.
Low delay of image transmission <100ms from air to ground.
Image transmission up to 10-100km, endurance 40-60min (different UAV, different endurance).
Failure protection
Self-stabilized multi-directional remote controlled Pan-tilt.

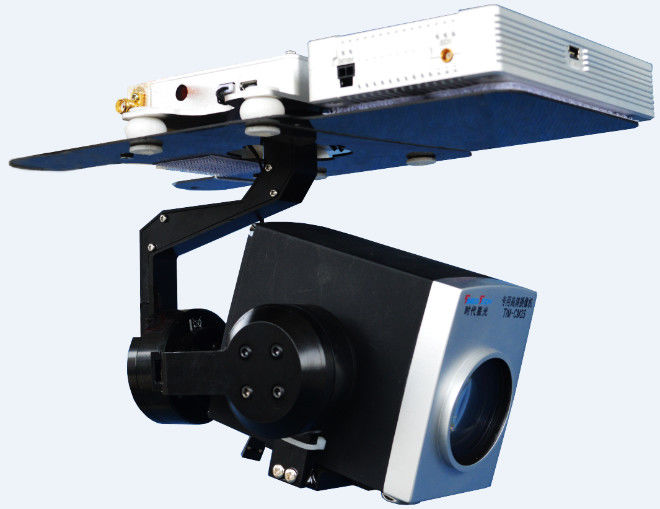

HD 1920×1080 TV camera with 30× optical zoom. Zooming by remote ground station
A number of national patents awarded.

Introduction

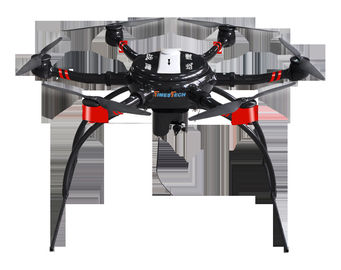

JH-YS-06A HD real-time imaging and reconnaissance UAV system is composed of 6-rotor UAV ( UAV platform model on customer request), HD real-time imaging transmission system, flight control system, specialized Pan-tilt, HD TV camera, portable ground image receiver and ground control system.

Six-rotor UAV is composed of rotor, motor, electronic speed regulator, battery pack, etc. The UAV body is made from carbon fiber. The body frame, support arm, undercarriage and motor frame are designed as light strong structure. The arms are integrated with electronic speed regulator, motor and propeller. The six arms adopt pinboard construction with more convenient and portable storage size. The rotor design has been optimized and improved. The aerodynamic characteristics fully comply with principle of aerodynamics, which can meet the flight requirements under complicated meteorological conditions. The battery pack uses high energy Li-polymer battery 24V/10000mAH with instantaneous current 20A, which supply power for both UAV and other payloads.


Field test of image transmission range ( test location: suburb):
Flight altitude: 100m, stable transmission 5-8km;
Flight altitude: 200m, stable transmission 10-16km;
Flight altitude: >500m, stable transmission 20-80km
