Land Electro Optical Systems , Infrared Eo Ir Imaging Systems JH601-100

Land Electro Optical Systems , Infrared Eo Ir Imaging Systems JH601-100

Land Electro Optical Systems , Infrared Eo Ir Imaging Systems  JH601-100
Land Electro Optical Systems , Infrared Eo Ir Imaging Systems  JH601-100
Land Electro Optical Systems , Infrared Eo Ir Imaging Systems  JH601-100
Product Details:
Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH601-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Customized safety box with wheels
Delivery Time: 5 month
Payment Terms: T/T, L/C, D/P
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Gimbal
Type: Multi Sensor Gimbal Sensor: Uncooled MWIR Thermal Camera HD Daylight Camera Laser Range Finder
Applications: Navigation,Surveillance, Early Warning Gyro Stablized: Gyro
Standard: Military THERMAL CAMERA Detector LWIR Uncooled FPA Microbolometer Pixel: 640*512
High Light:

Electro Optical Thermal System

,

electro optic systems

,

Infrared Eo Ir Imaging Systems

Land Electro Optical Systems , Infrared eo ir imaging systems

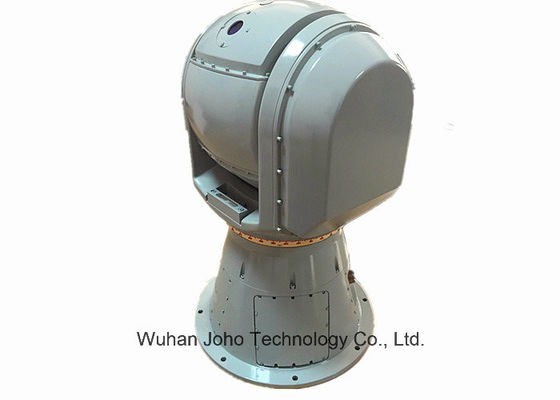

JH601-100 system is equipped with a high resolution LWIR uncooled thermal camera with 100mm lens, a day light camera and a 5Km laser range finder for detection, recognition, identification, aiming and ranging target at day and night, as well as provide real-time target azimuth, elevation, distance and video information. Built-in high accuracy gyro stabilization enables image stabilization while carrier attitude changes. Remote and Local operation is able to be switched flexibly according to practical application. Under remote operation mode, as a part of full defense system, it receiving target designation from mission computer and execute mission. Under local operation mode, it is used for navigation or monitoring.

Application
Applied to vehicle to search, observe, track and attack target with collimation control, navigation and early warning functions. It can also serve as assistant navigation and warning for the vehicle during the night.

Features

1. Multi-sensor integration (IR+TV+LRF)
2. Advanced tracking algorithm enables real-time tracking and memory tracking if target lost temporarily
3. 2-axis 2-gimbal mechanism, built in gyro-stabilization
4. Military standard components greatly improves system reliability
5. Super-strength aluminum alloy housing and fully sealed make sure system operation under any harsh environment
6. Modular design easy for repair and update
7. Friendly HMI for easy operation

Technical Specification

THERMAL CAMERA
Detector LWIR Uncooled FPA microbolometer
Pixel 640x512
Spectral band 8μm~12μm
FOV 6.2° x 5.0° ( electronic zoom: 2×)
Focal Length 100mm, F#: 1
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 55.8° x 2.1° continuous zoom
Illumination Range 200Lx ~105Lx
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~5km (visibility 10km, 8m*2m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret direction range Azimuth: ± 180° (0°is bow direction); Pitch: -20°~+75°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥50°/s
Pitch ≥50°/s
Video signal format CCIR PAL standard B/W
Communication RS232
ENVIRONMENTAL
Operating temperature range -40ºC ~ +60ºC
Storage temperature range -40ºC ~ +65ºC
POWER
Power Supply DC 24V/15A, DC28V/15A
Power Consumption DC24: ≤350W
DC28V: ≤420W
PHYSICAL
Dimension (L×W×H) Turret: Φ400×630mm
Electronic cabinet: 159x346.8x185.5mm
Control box: 364×200.5×137.5mm
Weight Turret: ≤70kg
Electronic cabin: ≤8.2kg
Control box: ≤1.2kg
