Detailed Product Description
Function: Searching, Observation, Tracking And Positioning Type: Visible Light Single Sensor
Application: Navigation, Surveillance, Rescue Customized: Support Customized
Platform: Two-axis MTBF: 7x24hours
CCD: 1/2.8 Inch CMOS
High Light:

electro optic systems

,

Infrared Tracking System



Infrared Daylight Camera Electro Optical Tracking System For Small Unmanned System



Description
JHP103-M145B is applied for unmanned surface vessel area, turntable inside integrated high-definition optical camera, through the high frequency passive suspension system with active gyro servo system to realize the isolation carrier disturbance and maintain the function of the visual axis stability;The turntable is equipped with a general image processing system, which can realize additional functions such as target tracking, target locking, temperature automatic warning and infrared temperature measurement.

Function

  1. Visible light single sensor, support system observe target day and light.

  2. 2-axis gimbal mechnism, built in gyro-stabilization, to achieve the scope of the target without dead angle coverage.

  3. Use of wireless to achieve working modes and state control by ground work station.

  4. Real time output and display.

  5. Provide network interface as a standard communication interface, to achieve video output and state control, easy to communicate with the platform, easy installation and commissioning.

  6. Small size, light weight, compact structure, carrier adaptability, low power consumption, cost-effective.

  7. Manual/auto tracking target.

  8. System self checking and report self-checking result.

  9. With the angle positioning function, the device optical axis can be quickly positioned to the user input azimuth, pitch angle position.

  10. With the work mode, azimuth, pitch angle, FOV (H×V) and other commonly used state data return function.




Technical Specification

Day Light Camera
Model JHP103-M145C
CCD 1/2.8 inch CMOS
Resolution 1920x1080 (1280x720, 704x576 for optional)
Focal Length 5.0mm~115mm (23x Optical Zoom)
FOV(H) 60°49'~2°85'
Lens 2.16 million pixels high definition
Focus Auto/Semi-Auto/Manual
Frame Frequency 30Hz (25Hz for optional)
Video Digital Video Network Interface,
Analog Video PAL Interface,
could output at the same time
Communication RS422
Ranging Fishing boat ( 6x2.5m ):≥1Km
Missile boat ( 34x8m):≥3Km
Gyro Stabilization Platform
Stabilization Accuracy 0.5mrad (1σ)
Accuracy ±0.1°(1σ)
Servo Driving System
Rotation Range
Azimuth n×360°Continuous
Pitch -35°~+85°(0° is the horizontal forward)
Maximum Angle Speed
Azimuth ≥40°/s
Pitch ≥30°/s
Video Tracking Module
Static Tracking Accuracy ≤1 pixel
Dynamic Tracking Accuracy Better than 1mrad
Tracking Speed ≥2.5 FOV/s
Minimum Tracking Contrast 5%
Environmental Specification
Operating Temperature Range -20ºC ~ +50ºC
Storage Temperature Range -30ºC ~ +60ºC
Physical Specification
Dimension (DxH) ≤ Φ145mm×230mm
Weight 3.38kg ( Not included electronic cabin)
Installation Ship Mast

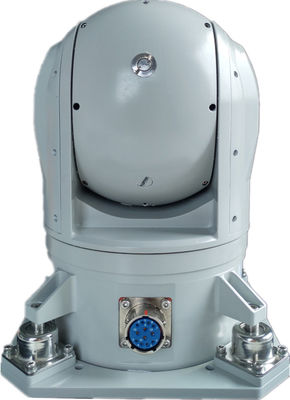

Physical Map
