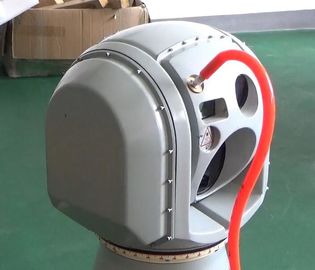

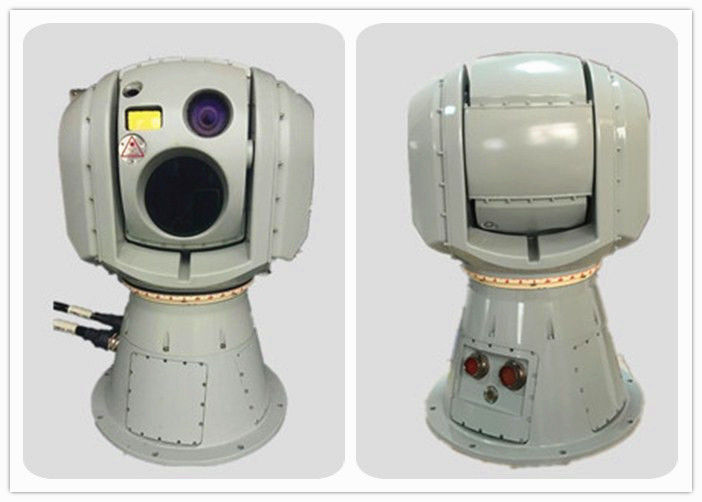

Multi - Sensor Electro Optical Targeting System With 300m~5km Laser Rangefinder

Multi - Sensor Electro Optical Targeting System With 300m~5km Laser Rangefinder

  • Multi - Sensor Electro Optical Targeting System With 300m~5km Laser Rangefinder
  • Multi - Sensor Electro Optical Targeting System With 300m~5km Laser Rangefinder
Multi - Sensor Electro Optical Targeting System With 300m~5km Laser Rangefinder
Product Details:
Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH602-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 3months after received payment
Payment Terms: T/T, L/C
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
IR: Uncooled LWIR Thermal Camera IR Lens: 100mm
CCTV: 752*582, 1/3" White/black CCD CCTV FOV: 55.8° × 2.1° Continuous Zoom
Laser Rangefinder: 300m~5km Laser Rangefinder Accuracy: ≤ ± 5m
System Stablization Accuracy: ≤ 0.2mrad (1σ) Turret Direction Range: Azimuth: ± 180° (continuous Scanning); Pitch: -20°~+75°
High Light:

electro optical infrared

,

electro-optical targeting system

Multi-Sensor IR + CCTV + LRF Electro-optical (EO/IR) Sensor System



Description:



Multi-Sensor IR + CCTV + LRF Electro-optical (EO/IR) Sensor System is equipped with a high resolution LWIR uncooled thermal camera with 100mm lens, a day light camera and a 5Km laser range finder for detection, recognition, identification, aiming and ranging target at day and night, as well as provide real-time target azimuth, elevation, distance and video information.







Features

  • 2-axis 2-gimbal mechanism, built in gyro-stabilization
  • Advanced tracking algorithm enables real-time tracking and memory tracking if target lost temporarily
  • Multi-sensor integration (IR+TV+LRF)
  • Military standard components greatly improves system reliability
  • Modular design easy for repair and update





Technical Specification

THERMAL CAMERA
Detector Uncooled Vox FPA
Pixel 640×480
Spectral band 8μm~14μm
FOV 6.2° × 5.0°
Focus length 100mm, F#:1
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 55.8° × 2.1° continuous zoom
Video resolution 200Lx ~105Lx
LASER RANGE FINDER
Wavelength 1.06μm
Range 300m~5km (target visible at 10km and target typical size of 8m*2m)
Accuracy ≤ ± 5m
SYSTEM PARAMETER
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret Direction Range

Azimuth: ± 180° (continuous scanning);

Pitch: -20°~+75°

TURRET MAXIMUM ANGLE SPEED
Azimuth ≥50°/s
Pitch ≥50°/s
Video Signal Format CCIR PAL B/W
Electronic zoom ×2
Communication RS232/RS422
ENVIRONMENTAL TEMPERATURE
Working Temperature -40℃ ~ +50℃
Storage Temperature -40℃ ~ +65℃
Power System
Power Supply DC 24V/15A, DC28V/15A
Power Consumption DC24: ≤350W DC28V : ≤420W
PHYSICAL PARAMETER
Dimension (L×W×H)

Turret: Φ400×630mm

Electronic Cabin: 159×346.8×185.5mm

Control box: 364×200.5×137.5mm

Weight

Turret: ≤70kg

Electronic Cabin: ≤8.2kg

Control Box: ≤1.2kg



Multi - Sensor Electro Optical Targeting System With 300m~5km Laser Rangefinder 0
