D380 Electro Optic Sensors

D380 Electro Optic Sensors

    • D380 Electro Optic Sensors
  • D380 Electro Optic Sensors

    Product Details:

    Place of Origin: CHINA
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: D380

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Standard Safety Equipment Case
    Delivery Time: 2months after received payment
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Function: Search, Detect And Tracking Target Technology: Infrared
    Style: Gimbal Sensor: MWIR Cooled Thermal Camera
    HDMI Format: PAL/NTSC Sensor Size: 640X512
    Kind: Continuous Zoom Applications: UAV And Manned Aircraft Target Monitoring
    Configuration: Thermal Camera,Continuous Zoom TV Camera And Laser Rangefinder Standard: GJB
    Feature: Waterproof,weatherproof Certification: ISO9001:2000 SGS
    Effective Distance: 6km
    High Light:

    electro optics systems

    ,

    electro-optical targeting system

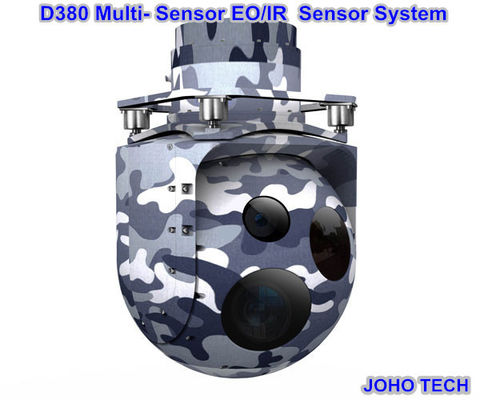

    D380 Multi- Sensor EO/IR Electro Optical Sensor System with IR / HD Camera And LRF



    FEATURES:



    1. 640x512 MWIR cooled thermal camera

    2. 10x continuous zoomm

    3. 2-axis 4-gimbal mechanism

    4. 2-axis gyro stabilization

    5. Continuous zoom color HD camera

    6. Excellent capability to penetrate the fog

    7. Salt mist and water proof meet D0-160 test standard

    8. Easy operation


    APPLICATIONS:



    1. UAV and manned aircraft target monitoring

    2. Capable of search, detection and tracking target


    TECHNICAL DATA:



    Thermal Camera
    Detector MWIR Cooled FPA
    Pixel 640x512
    Continuous zoom 10x
    HD CCD camera
    Resolution 1920×1080P (16:9); 1620×1200 (4:3)
    Continuous zoom 20×
    Stabilization Accuracy 30μrad
    Physical
    Dimension φ380x530(H)
    Weight ≤38kg
    Laser Range Finder: Optional



    D380 Electro Optic Sensors 0
