IRST Long Range Gyro Stabilized Systems

IRST Long Range Gyro Stabilized Systems

  • IRST Long Range Gyro Stabilized Systems
IRST Long Range Gyro Stabilized Systems
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH602-1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case with wheels
Delivery Time: 2-3months after received payment
Payment Terms: T/T , D/A
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Pan / Tilt
Type: PTZ Camera Sensor: MWIR Cooled HgCdTe FPA
HDMI Format: PAL/NTSC Horizontal Resolution: 640X512
Kind: Auto Focus Lens Effective Distance: 40km
Sensor Size: 640X512 Focus Length: 110~1100 Continuous Zoom
Configuration: Thermal Camera Stabilization: Gyro
Standard: GJB Feature: Waterproof/Weatherproof
High Light:

gyro stabilized systems

,

Infrared Tracking System

IRST Long Range EO IR Systems , Electro-Optical Tracking Camera System JH602-1100



JH602-1100EOTS Ultra Long Range Electro Optical Tr...



Description:

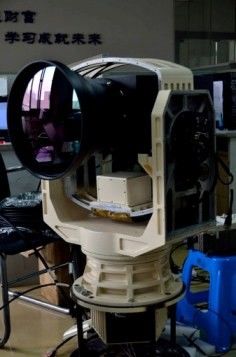

JH602-1100 EOTS electro-optical infrared (EO/IR) tracking camera system is equipped with

a high resolution 640x512 HgCdTe MWIR cooled thermal camera with 1100~110mm continuous zoom lens which

offers super long range security and surveillance application, capable of observation, recognition, aiming and

tracking target at day and night. JH6021100 system can work independently for ship navigation and surveillance

at night, or integrated into a larger surveillance system, capable of receiving slaving instruction from radar.





Applications:



Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track target with

collimation control, navigation and early warning functions.





Features:

  • High accuracy continuous zoom lens matches complex variable control system, provides crisp image
  • and stabilized optic-axis in 110mm~1100mm focus length.
  • 640×512 HgCdTe cooled FPA detector provide high quality image.
  • Multi axis stabilization platform, combined with high accuracy gyro and servo control system, ensures
  • system have high accuracy stabilized tracking ability.
  • Portable CDU, easy operation.
  • Military standard components, high reliability, long lifetime enables working under severe environment for
  • a long time.
  • Fully-sealed waterproof, optical-mechanical electronic integration design meets military standard.



Specifications:



THERMAL CAMERA

Detector

Cooled HgCdTe FPA

Pixel

640×512

Spectral band

3.7~4.8um

FOV

0.5°×0.4°~5°×4°

with 1100~1100mm continuous zoom lens

Optical-axis parallelism

≤1 pixel

SERVO

Electronic zoom

2× (optional: 4×)

Stabilization accuracy

≤0.15mrad(1σ)

TURRET DIRECTION RANGE

Azimuth

0~330° (optional n×360°);

Elevation

-20°~+75°

Turret maximum angle speed

Azimuth: >50°/s; Elevation: >50°/s

Tracking mode

CTW, CTB, COT

Video signal format

standard CCIR

Data rate

50Hz,100Hz

Communication

RS422

POWER

Input voltage

DC 24V /15A, 220VAC

Consumption

96W (average), 240W (maximum)

ENVIRONMENTAL

Operating temperature range

-40ºC~+60ºC

Storage temperature range

-50ºC~+70ºC

PHYSICAL

Dimension

700mm × 700mm × 1050mm (system)

400mm × 300mm × 190mm (CDU)

Weight

approx. 127kg (Camera); 10kg(CDU)
