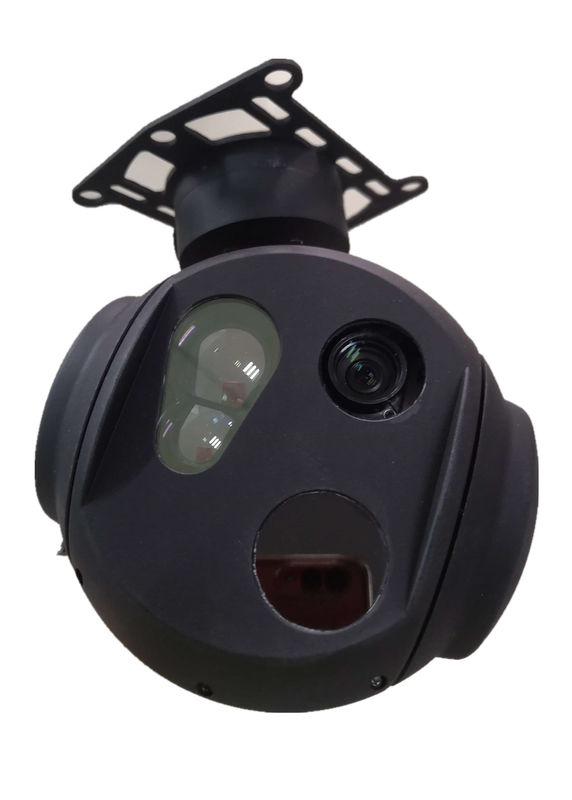

Universal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And Track

Universal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And Track

    • Universal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And Track
    • Universal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And Track
  • Universal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And Track

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001
    Model Number: JHP307-B115A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Customized Aluminum Alloy Case
    Delivery Time: Two months
    Supply Ability: 50 Sets/Year
    Contact Now
    Detailed Product Description
    Applications: Navigation, Positioning, Searching, Ranging Configuration: IR Thermal Camera, Day Light Camera, LRF
    Sensor Type: IR+TV+LRF Color: White
    Type: EO/IR Thermal Camera System Detector: Uncooled FPA
    Pixel: 640x512 Weight: ≤650g
    Power Supply: DC12V Spectral Band: 8μm~14μm





    Universal Gimbal Small Size Unmanned Infrared Imaging Systems

    Application
    JHP307-B115A gimbal can be installed on various helicopters, unmanned aerial vehicles and unmanned airships to search, observe and track land and water targets. It is widely used in aerial photography, flight navigation, reconnaissance and other fields.

    Features


    1Dual sensors support day & night observation; reserved laser ranging function.
    2Three-axis stabilization on azimuth, pitch and roll, no dead angle for observation area.
    3Wireless transmission realizes working modes and states control from the ground workstation as well as real-time transmit of video images.
    4Standard communication interface facilitates communication, installation and debugging with UAV, helicopter and other vehicles.
    5Small size, light weight and compact structure with strong adaptability, low power consumption and high cost efficiency.Small size, light weight and compact structure with strong adaptability, low power consumption and high cost efficiency.
    6Real-time manual/ auto tracking and locking by video tracker (flight target speed less than 20km/h).



    Technical Specification

    Thermal Camera
    DetectorUncooled Vox FPA
    Pixel640*512
    Spectral Band8μm~14μm
    Focus Length25mm
    Day Light Camera
    Pixel1920*1080
    Optical Zoom10x
    Laser Range Finder
    Wavelength905nm
    Beam Spread Angle≤1.0mrad
    Ranging Accuracy≤±5m
    System Parameter
    Stabilization Accuracy≤0.5mrad (1σ)
    Azimuth360ºcontinous
    Roll-30º~+30º
    Elevation-20º+110º
    Power SupplyDC 12V
    Power Consumption
    <20W

    DemensionΦ115× 190mm
    Weight

    <800g




    Physical Map

    Universal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And TrackUniversal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And TrackUniversal Gimbal Small Size Unmanned Infrared Imaging Systems Tracking Observe And Track
