EOTS Long Range Electro Optical Sensor System 360° Continuous Scanning

EOTS Long Range Electro Optical Sensor System 360° Continuous Scanning

  • EOTS Long Range Electro Optical Sensor System 360° Continuous Scanning
EOTS Long Range Electro Optical Sensor System 360° Continuous Scanning
Product Details:
Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH320-150/75 & JH320-300/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Safety Case
Delivery Time: 2months after received payment
Payment Terms: T/T, L/C,
Supply Ability: 200Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Pan/tilt
Type: PTZ Camera Sensor: FPA
Sensor Size: 320x256 Kind: Motorized Dual-FOV Lens
Applications: Coastal Survillance Configuration: Thermal Camera,Continuous Zoom TV Camera
Effective Distance: >10km (Ship); >20km(Ship) Standard: GJB
Feature: Waterproof,weatherproof Remote Control: Without Remote Control
High Light:

electro optical infrared

,

electro-optical targeting system

EOTS Long Range Electro Optical Sensor System 360° Continuous Scanning

EOTS Long Range Electro-optical Thermal Imaging Sensor System
Electro-optical Thermal Imaging Sensor System

This Electro-optical Thermal Imaging Sensor System is equipped with a thermal camera and day
light camera to observe intruders and other threats from the sea in total darkness and in bad weather.
This Electro-optical Thermal Imaging Sensor System is an intelligent IP network
so that establish a "virtual fence" near the coast to detect intruders from the sea before they reach the coastal.
It also can be connected by the integrator to a radar system. If the radar detects an object, the PTZ camera
system will automatically turn in the right direction and give you a visual image so that you can instantly see
what the blip on the radar screen really means. It is an automatic moving target detection and recognition device,
ideal for integration on fixed platforms, buildings and tripods.


FEATURES

  1. Configurable sensor and lens to satisfy various mission.
  2. Able to be connected with radar for following monitoring in "Slave mode"
  3. Camera system output captured image to background for processing. Functionality of tracking target, output target azimuth and elevation angle.
  4. Simply connect camera system over Ethernet to a remote control panel.
  5. IP66 protection against dust and water ingress, as well as resist to corrosion, tarnishing, salt fog.
  6. Modular design, easy for repair or upgrade

TECHNICAL SPECIFICATIONS


System Parameters

Pan range

360°×n continuous

Tilt range

±80°

Pan speed

0.1~30°/s Max.

Tilt speed

0.1~25°/s Max.

Communication and control

RS422 / Ethernet

Shield

Yes, heating, air-cooled, sunshade, wiper

Thermal Camera

Detection range
(visibility: 23km,
15m×10m target)

10km

20km

Sensor

Uncooled FPA VOx

Cooled FPA HgCdTe

Pixel

320×240, 17μm×17μm

320×256, 30μm×30μm

Spectral band

8μm~12μm

3μm~5μm

NETD

≤55mK

≤35mK

Frame frequency

25Hz

50Hz

Focus length

150mm/75mm

300mm/75mm

FOV

2°×1.5°/ 4°×3°

1.8°×1.5°/ 7.3°×5.8°/

Focusing

Motorized

Electronic zoom

×2

Image Processing

DDE (Digital Detail Enhancement),
ACG (Automatic Gain Control)

Daylight Camera

Recognition range
(visibility: 23km,
15m×10m target)

10km

20km

Sensor

1/3" color CMOS

1/3" color CMOS

Pixel

1024×768

1024×768

Color

Black/white

Black/white

FOV

0.9°×0.7°~37°×27.5°

18°×13.5°~1°×0.75°

Continuous zoom

yes

Focusing

Motorized, auto focus

Automatic light control

Yes

Communication Interface

RS422

Video output

1-way PAL

Image Presentation

Video output

PAL both thermal and visible channel

Environment parameters

Operating temperature

-40ºC~+60ºC

Storage temperature

-50ºC~+70ºC

IP Protection

IP66, resist to corrosion, tarnishing, salt fog

Power Parameters

Power supply

24VDC~36VDC

Physical Parameter

Weight

≤40kg

≤50kg

Dimension

Undetermined

Color

White

Application Environment

Outdoor

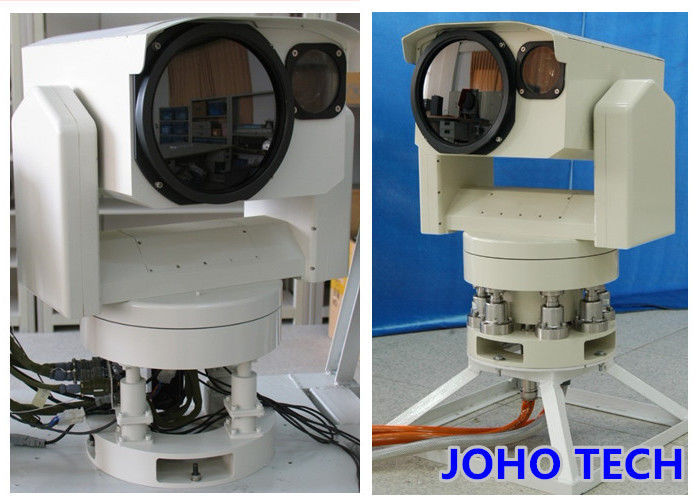

EOTS Long Range Electro Optical Sensor System 360° Continuous Scanning 0
