WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | China |
| Brand Name: | JOHO |
| Certification: | GJB |
| Model Number: | CZ103 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Customized Aluminum Alloy Case |
| Delivery Time: | 2months after received payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100Sets/Year |
| Technology: | Laser | Style: | Laser Range Finder |
|---|---|---|---|
| Kind: | 300m~20000m | Accuracy: | ≥98% |
| Applications: | Portable Electro-optical Surveillance System | Feature: | High Reliability And High Accuracy |
| High Light: | long range laser rangefinder,compact laser rangefinder |
||

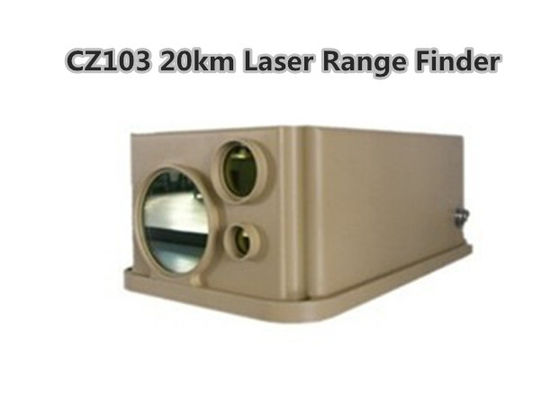

Wireless Digital Gps Laser Rangefinder With Angle , Laser Pointer Range Finder
20km Laser Rangefinder
20km LRF
Applications:
Portable EO Surveillance System
Features:
Specifications:
| Measurement characteristics | |
| Measurement Range | 300m~20000m (under clear weather, 5m × 5m target) |
| Range accuracy | +/-5m |
| Proper Probability | ≥98% |
| Repetition rate | 1Hz |
| Transmitter / Receiver | |
| Wavelength | 1.06μm |
| Beam divergence | 1mrad |
| Interface requirements | |
| Communication Interface | RS422 |
| Power supply | AC220V |
| Environmental specification | |
| Operating Temperature | -40℃~＋55℃ |
| Storage Temperature | -45℃~＋70℃ |
| Relative humidity | 95±3% at 35℃ |
| Vibration |
Frequency range: 5Hz~200Hz~5Hz, Uniform accelerated sine vibration. Acceleration:1.5g. Direction: X, Y, Z Each direction for 12min |
| Shock |
Acceleration: 30g Duration time: 11ms±2ms Direction: X, Y, Z Times: 6tims / direction |
| MNBF | ≥100,000times |
| MTTR | ≤ 30min |
| Mechanical specification | |
| Dimension | 404mm×255mm×170mm (L x W x H) |
| Weight | 12kg |
