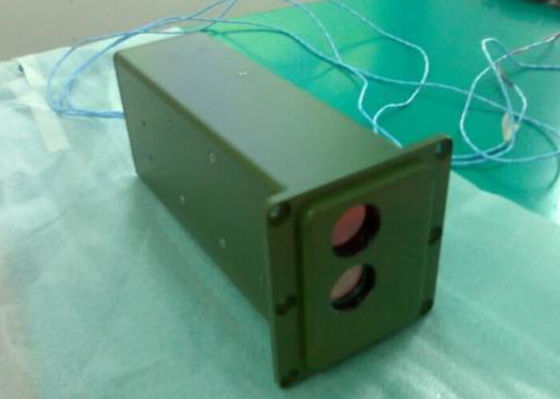

18km Measurement​ Range Laser Range Finder For EO Surveillance System

18km Measurement​ Range Laser Range Finder For EO Surveillance System

  • 18km Measurement​ Range Laser Range Finder For EO Surveillance System
  • 18km Measurement​ Range Laser Range Finder For EO Surveillance System
18km Measurement​ Range Laser Range Finder For EO Surveillance System
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: GJB
Model Number: JH18
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 2months after received payment
Payment Terms: T/T, L/C
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Technology: Laser Style: Laser Range Finder
Kind: 300m~18000m(tank:2.3mx2.3m) Wavelength: 1.064μm
Applications: Portable Electro-optical Surveillance System Feature: High Reliability And High Accuracy
Operating Temperature: -40℃~+55℃ Power Supply: 24V-30V DC
High Light:

18km Laser Range Finder

,

RS422 Interface Laser Range Finder

,

High Accuracy Laser Range Finder

18km Measurement​ Range Laser Range Finder For EO Surveillance System



18km Laser Range Finder

18km LRF





Applications



Portable EO Surveillance System



Features

  1.   Long range up to 18km
  2.   Flexibility of use as alone device or working with thermal camera or night vision
  3.   Lightweight



Specifications

Measurement characteristics

Measurement Range

300m~18000m (tank:2.3mx2.3m)

Range accuracy

+/-5m

Proper Probability

≥98%

Repetition rate

3Hz, working 1min, have a rest 1min

Transmitter / Receiver

Wavelength

1.064μm

Beam divergence

≤1.2mrad

Interface requirements



Communication Interface

RS422

Power supply

24V-30V DC

Environmental specification

Operating Temperature

-40℃~+55℃

Storage Temperature

-55℃~+70℃

Relative humidity

95±3% at 35℃

Vibration

Frequency range: 5Hz~200Hz~5Hz,

Uniform accelerated sine vibration. Acceleration:1.5g.

Direction: X, Y, Z  Each direction for 12min

Shock

Acceleration: 30g

Duration time: 11ms±2ms

Direction: X, Y, Z

Times: 6tims / direction

MNBF

≥20,000times

MTTR

≤ 30min

Mechanical specification

Dimension

300mm×160mm×130mm (L x W x H)

Weight

5kg
