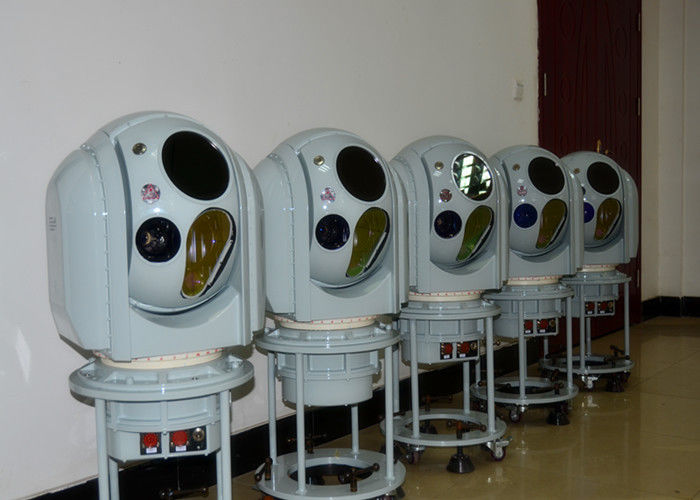

30km Long Range Electro Optical Sensor System With Collimation Control Function

30km Long Range Electro Optical Sensor System With Collimation Control Function

    • 30km Long Range Electro Optical Sensor System With Collimation Control Function
    • 30km Long Range Electro Optical Sensor System With Collimation Control Function
  • 30km Long Range Electro Optical Sensor System With Collimation Control Function

    Product Details:

    Place of Origin: CHINA
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: JH602-300/75

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Customized Aluminum Alloy Case
    Delivery Time: 3-4 months after received payment
    Payment Terms: T/T
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Technology: Infrared Style: Gyro Gimbal
    Type: Multi Sensor EO IR Camera Sensor: MWIR Cooled HgCdTe FPA
    HDMI Format: PAL Sensor Size: 320x256
    Effective Distance: 20km Applications: Navigation,Surveillance,Rescue
    Configuration: Thermal Camera,Continuous Zoom TV Camera,LRF Gyro Stablization: Gyro
    Standard: GJB Feature: Waterproof,weatherproof

    30km Long Range Multi-Sensors Electro Optical Sensor System with IR TV and LRF

    Electro-optical EO/IR Sensor System



    Description:

    JH602-300/75 30km Long Range Multi-Sensors Electro Optical Sensor System  for Security Application is equipped with a high performance thermal camera, TV camera and laser range finder, enables search target at day/night, as well as aiming, recognition, tracking, ranging target, real-time providing target angle, angular speed, VI (video/image) etc information. As a part of fire control system, it keeps the sensors Lines of Sight (LOS) aiming and direction stabilization while the carrier (ship) attitude changing or under vibration condition.S3500 system can work independently, additionally can receive slaving instruction from fire control system, working with various launching system to attack sea and air target; On the non-combat condition, it also can be used as ship auxiliary navigation and surveillance at night.



    Features:

    1.   Multi-sensor IR+TV+LRF
    2.   High accuracy calibration keeps 3 sensors’ optical-axis parallel
    3.   Utilizing 2-axis design, high accuracy gyro stabilization ensures stabilized tracking
    4.   Military standard components, capable of working under severe environment for a long time

    Applications:

    1. Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track target with collimation control, navigation and early warning functions.



    Specifications:



    THERMAL CAMERA
    Detector cooled HgCdTe FPA
    Pixel 320*256 ( optional 640*512 higher resolution)
    Spectral band 3.7μm~4.8μm
    FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
    FOV switching time ≤ 1s
    Electronic zoom
    DAY LIGHT CAMERA
    Detector 752*582, 1/3" white/black CCD
    FOV 18°*13.5°~1°*0.75° continuous zoom
    LASER RANGE FINDER
    Wavelength 1.06μm
    Ranging 300m~20km (visibility 23km, 15m*10m target)
    Measurement accuracy ≤ ± 5m
    SERVO
    Stabilization accuracy ≤ 0.2mrad (1σ)
    Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
    TURRET MAXIMUM ANGLE SPEED
    Azimuth ≥50°/s
    Pitch ≥50°/s
    Video signal format CCIR PAL standard B/W
    Communication RS422/RS232
    ENVIRONMENTAL
    Operating temperature range -40℃ ~ +50℃
    Storage temperature range -50℃ ~ +70℃
    POWER
    Power Supply DC 24V/15A, DC28V/20A
    Power Consumption

    DC24/96W (avg.)/240W (Max.)

    DC28V/28W(avg.)/70W (Max.)

    PHYSICAL
    Dimension Turret ≤ Φ400× 750
    Control box 500 mm X 230 mm X 87 mm
    Turret Weight ≤ 120kg (including mobile base);
    Control box Weight ≤ 5kg
