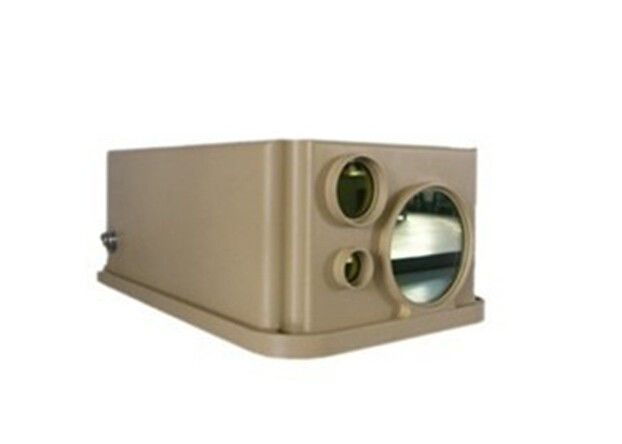

Eye Safe Military Grade Laser Range Finder With RS422 Interface

Eye Safe Military Grade Laser Range Finder With RS422 Interface

    • Eye Safe Military Grade Laser Range Finder With RS422 Interface
    • Eye Safe Military Grade Laser Range Finder With RS422 Interface
  • Eye Safe Military Grade Laser Range Finder With RS422 Interface

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: GJB
    Model Number: CZ103

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Customized Aluminum Alloy Case
    Delivery Time: 2months after received payment
    Payment Terms: T/T, L/C
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Technology: Laser Style: Laser Range Finder
    Kind: 300m~20000m Accuracy: ≥98%
    Applications: Portable Electro-optical Surveillance System Standard: GJB
    Feature: High Reliability And High Accuracy Range Accuracy: +/-5m

    Eye Safe Military Grade Laser Range Finder With RS422 Interface

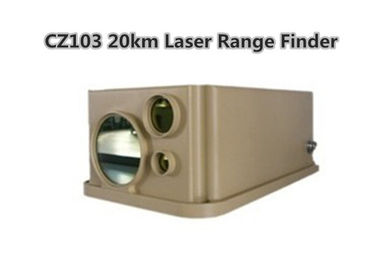

    20km Laser Range Finder

    20km LRF





    Applications:



    Portable EO Surveillance System





    Features:

    •  Compact design
    •  High performance, high reliability
    •  Designed for military environment
    •  Portable application, also easily integrated into OEM Systems



    Specifications:



    Measurement characteristics
    Measurement Range 300m~20000m (under clear weather, 5m × 5m target)
    Range accuracy +/-5m
    Proper Probability ≥98%
    Repetition rate 1Hz
    Transmitter / Receiver
    Wavelength 1.06μm
    Beam divergence 1mrad
    Interface requirements
    Communication Interface RS422
    Power supply AC220V
    Environmental specification
    Operating Temperature -40℃~+55℃
    Storage Temperature -45℃~+70℃
    Relative humidity 95±3% at 35℃
    Vibration

    Frequency range: 5Hz~200Hz~5Hz,

    Uniform accelerated sine vibration. Acceleration:1.5g.

    Direction: X, Y, Z Each direction for 12min

    Shock

    Acceleration: 30g

    Duration time: 11ms±2ms

    Direction: X, Y, Z

    Times: 6tims / direction

    MNBF ≥100,000times
    MTTR ≤ 30min
    Mechanical specification
    Dimension 404mm×255mm×170mm (L x W x H)
    Weight 12kg
