WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | CHINA |
| Brand Name: | JOHO |
| Certification: | ISO9001:2000 |
| Model Number: | D180 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Safety Equipment Case |
| Delivery Time: | 2months after received payment |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 100Sets/Year |
| Technology: | Dual Band | Style: | Gimbal |
|---|---|---|---|
| Sensor: | CCD | HDMI Format: | PAL/NTSC |
| Horizontal Resolution: | 1920 | Kind: | Continuous Zoom |
| Certification: | CE, ISO9001:2000 | Feature: | Waterproof, Weatherproof,high Definition |
| Effective Distance: | 6km | Sensor Size: | 640x512 |
| Application: | UAV And Manned Aircraft Target Monitoring | Function: | Capable Of Search, Detect And Track Target |
| High Light: | gyro stabilized systems,Infrared Tracking System |
||

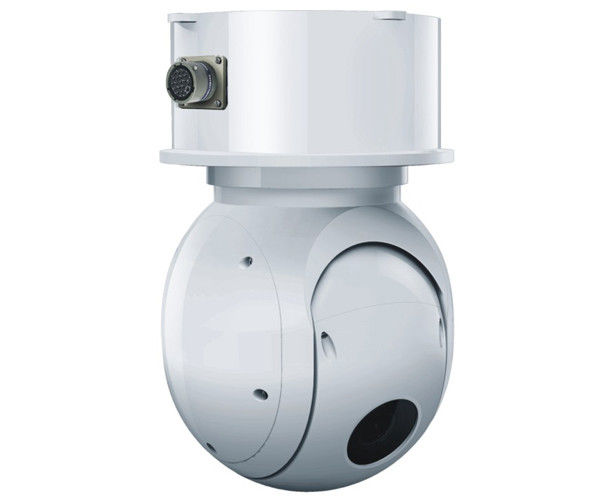

D180 Micro UAV EO IR Systems , Electro Optical Thermal Imaging Pod System
Description:
D180 Micro UAV Electro Optical EO IR Thermal Imaging Pod System Series include D180A/180B. D180A is equipped with a HD day light camera which is capable of recognize Ф3mm×10mm linear target at 50m for power line inspection. D180B is equipped with a high resolution LWIR uncooled thermal camera for day and night search. Featuring with small size, light weight, it is ideal for micro-UAV search, rescue, monitoring.
Applications:

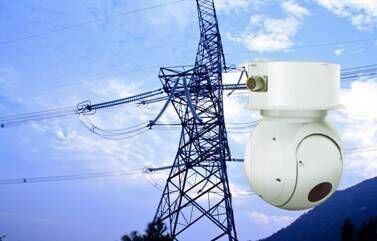

Power-line inspection.
Specification:
|
180A HD Day Light Camera |
|
180B Thermal Camera |
||
|
Video resolution |
1920×1080 |
Detector |
LWIR Uncooled FPA |
|
|
Stabilization accuracy |
≤1mrad |
Pixel |
640×480 |
|
|
Recognition range |
50m ( Ф3mm×10mm linear target) |
NETD |
80mK at 25℃ |
|
|
Movement Range |
Accuracy |
|||
|
Azimuth |
360°×n continuous |
Stabilization accuracy |
≤1mrad |
|
|
Elevation |
+20～-60°(extensible) (horizontal forward is 0°) |
Relative temp. measurement accuracy |
1℃ |
|
|
Record capability |
Movement Range |
|||
|
Video |
32G, capable of storage 1080P HD more than 4h |
Azimuth |
360° ×n continuous |
|
|
Physical |
Elevation |
+20～-60°(extensible) (horizontal forward is 0°) |
||
|
Volume |
Ф180×330mm(H |
Record capability |
||
|
Weight |
≤5Kg |
Video |
32G, capable of storage 1080P HD more than 4h |
|
|
|
Physical |
|||
|
|
Volume |
Ф180×330mm |
||
|
|
Weight |
≤5Kg |
||
