WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | Wuhan China |
| Brand Name: | JOHO |
| Certification: | ISO9001:2000 |
| Model Number: | JHS640-240P4 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Customized Aluminum Alloy Case |
| Delivery Time: | Two months |
| Supply Ability: | 50 Sets/Year |
| Features: | High Precision, High Reliability And Long Life | Applications: | Navigation, Rescue,Searching, Targeting, Tracking |
|---|---|---|---|
| Sensor Type: | IR+TV+LRF+Multi-spectral | Type: | Multi-sensor Gimbal |
| Detector: | Uncooled FPA | Focus Length: | 75mm |
| Spectral Band: | 8μm~12μm | LRF Wavelength: | 1.55μm |
| Dimension: | Φ240× 300mm | Power Supply: | DC 9-36V |
| Azimuth: | 360°continuous | ||
| High Light: | Multi Sensor Uncooled Thermal Camera,Uncooled Thermal Surveillance System |
||

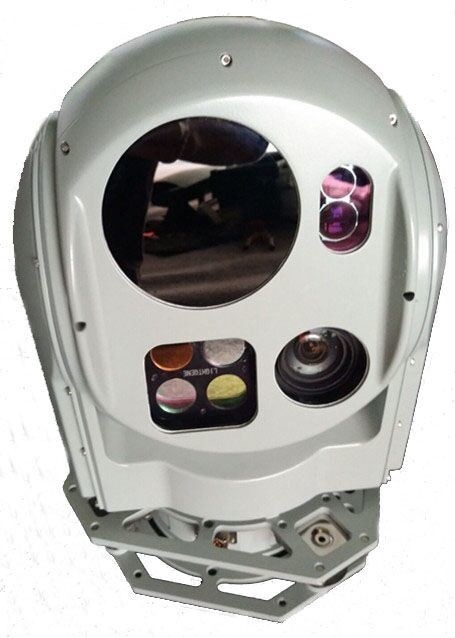

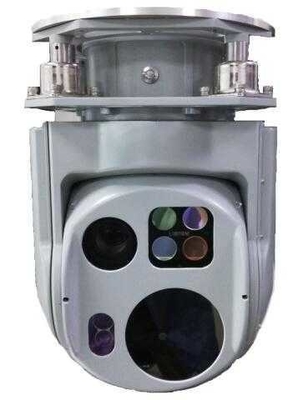

High Precision Multi Sensor Uncooled Thermal Camera Surveillance System
Airborne Installations: Fixed-wing, Rotary-wing, UAVs
Application: Surveillance & Reconnaissance, Covert Intelligence, Search & Rescue, Target Recognition and Tracking
Features
Technical Specification
| JHS640-240P4 Multi-sensor UAV Gimbal | |||
| Thermal Camera | |||
| Detector | Uncooled FPA | Pixel | 640×512 |
| Spectral band | 8μm~12μm | Focal length | 75mm |
| NETD | ≤50mK@25℃ | Recognition distance |
≥1km ( person:1.8×0.5m) |
| Day Light Camera | |||
| Detector | CMOS | Focal length | 20x optical zoom |
| Pixel | HD1920×1080 | FOV | 55.4°~ 2.9° |
| Laser Range Finder | |||
| Wavelength | 1.55μm | Accuracy | ≤ ± 5m |
| Range | 20m~2km (visibility 10km, 3m*3m target) | ||
| Multi-spectral Camera | |||
| Wave length | 500nm-800nm | Pixel | 1280x1024 |
| Frame rate | ≥50Hz | Recognition distance |
≥500m ( person:1.8×0.5m) |
| System Parameter | |||
| Azimuth | 360°continuous | Elevation | -110°~+20° |
| Stabilization accuracy | ≤0.5mrad (1σ) | Communication | RS422 |
| Power supply | DC 9-36V | Power consumption | ≤60W |
| Dimension | Φ240× 300mm | Weight | ≤7kg |
Company Profile
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.
Customer Distribution
Service Process
Products
Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
Advantages
Certificate & Honor
