Electro Optical Coastal Surveillance Radar System For Unmanned Ship

Electro Optical Coastal Surveillance Radar System For Unmanned Ship

  • Electro Optical Coastal Surveillance Radar System For Unmanned Ship
  • Electro Optical Coastal Surveillance Radar System For Unmanned Ship
Electro Optical Coastal Surveillance Radar System For Unmanned Ship
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHS209-S05-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Safety Equipment Case
Delivery Time: negotiation
Payment Terms: T/T, L/C,, Western Union, MoneyGram
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Function: Searching, Observation, Tracking And Positioning Gyro Stabilised Gimbal: 2 Axis
Sensor: HD CCD And IR Thermal Imager Dimension: 156mm(Diameter)×244mm(H)
Application: Unmanned Ship, Unmanned Vehicle, Usv, Uav Pixel: 1920x1080
Tracking Speed: ≥2.5FOV/S Stabilization Accuracy: ≤0.5mrad
Detector: VOX Uncooled FPA Power Supply: DC 12V
Azimuth: ≥30°/s Wavelength: 1.06μm
High Light:

Unmanned Ship Coastal Surveillance Radar System

,

Electro Optical Coastal Surveillance Radar System

,

Unmanned Ship Electro Optical System

JHS209-S05-100 Unmanned Ship Coastal Surveillance Radar System

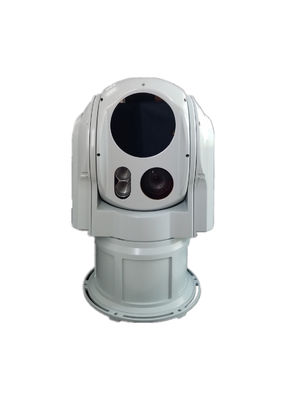

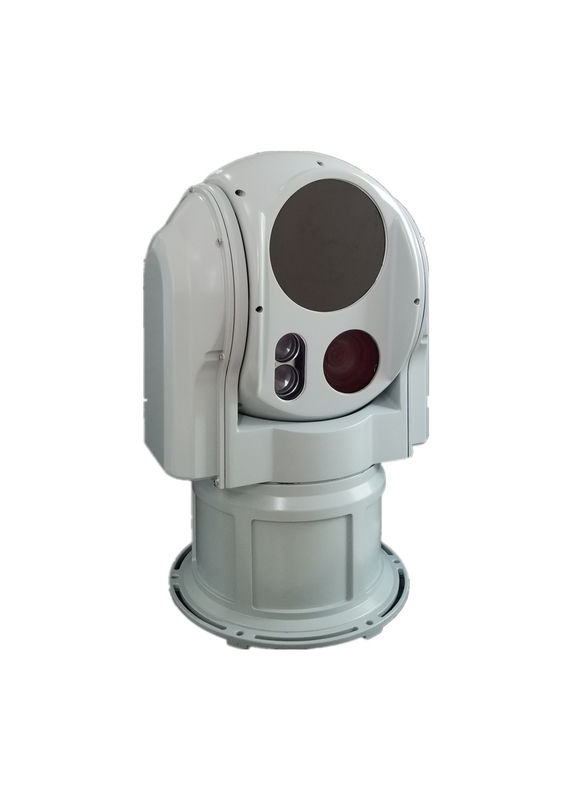

The shipboard photoelectric monitoring system is a highly integrated optical electro mechanical system, equipped with Hd 1080p 30 × daylight camera, uncooled LWIR thermal camera and 5km laser rangefinder. The system is a two axis and two frame stable platform. With the characteristics of compact structure and modular design, it is suitable for ships that meet the military and civil requirements of searching, observing, reconnoitering, tracking sea and air targets, and widely used in the fields of navy, police, coast guard and maritime.Its fully sealed, waterproof, anti vibration, and anti impact support it a long service life in harsh environment.

Functions

1. Operation mode, azimuth and elevation data can be returned.

2. Two axes (azimuth and elevation) are stable, and high precision gyro and servo control system realize full coverage reconnaissance.

3. Support HD SDI image transmission and IP network video / image transmission

4. Small size, light weight, strong adaptability, low power consumption and high cost performance.

5. Video tracking function.

6. The high precision correction ensures the optical axis alignment of thermal camera, solar camera and laser rangefinder.

Performance Specifications

Technical Specification

THERMAL CAMERA
Detector Uncooled FPA
Pixel 640*512
Spectral band 8μm~14μm
Pixel 17mm x 17mm
Focal length 80mm
DAY LIGHT CAMERA
Detector 1/2.8" CMOS
Focal length 4.3~129mm, 30x
Resolution 1920×1080
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~5km (visibility 10km, 3m*3m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤0.5mrad(1σ)
Turret direction range azimuth:360° continuous; elevation:+60°~-60°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥30°/s
Pitch ≥30°/s
ENVIRONMENTAL
Operating temperature range -20ºC ~ +40ºC
Storage temperature range -30ºC ~ +50ºC
Tracking
Tracking speed ≥2.5FOV/S
Min tracking contrast ratio 5%
Dynamic tracking accuracy superior to 1mrad
POWER
Power Supply DC 24V
PHYSICAL
Dimension Turret ≤ Φ220× 400mm
Turret Weight ≤ 10kg







Electro Optical Coastal Surveillance Radar System For Unmanned Ship 0Electro Optical Coastal Surveillance Radar System For Unmanned Ship 1Electro Optical Coastal Surveillance Radar System For Unmanned Ship 2Electro Optical Coastal Surveillance Radar System For Unmanned Ship 3

Electro Optical Coastal Surveillance Radar System For Unmanned Ship 4Electro Optical Coastal Surveillance Radar System For Unmanned Ship 5Electro Optical Coastal Surveillance Radar System For Unmanned Ship 6Electro Optical Coastal Surveillance Radar System For Unmanned Ship 7
