WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | China |
| Brand Name: | JOHO |
| Certification: | ISO9001 |
| Model Number: | JHP107-M145A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Safety Equipment Case |
| Delivery Time: | negotiation |
| Payment Terms: | T/T, L/C,, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Year |
| Detector: | VOx Uncooled FPA | Gyro Stabilised Gimbal: | 2 Axis |
|---|---|---|---|
| Dimension: | 156mm(Diameter)×244mm(H) | Resolution: | 1920x1080 |
| Stabilization Accuracy: | ≤0.5mrad | Power Supply: | DC 12V |
| NETD: | ≤50mK | Pixel Size: | 17μm×17μm |
| Azimuth Range: | N×360° | ||
| High Light: | VOX Uncooled FPA Detector IR System,USV Electro Optics Systems,1920x1080 Electro Optics Systems |
||

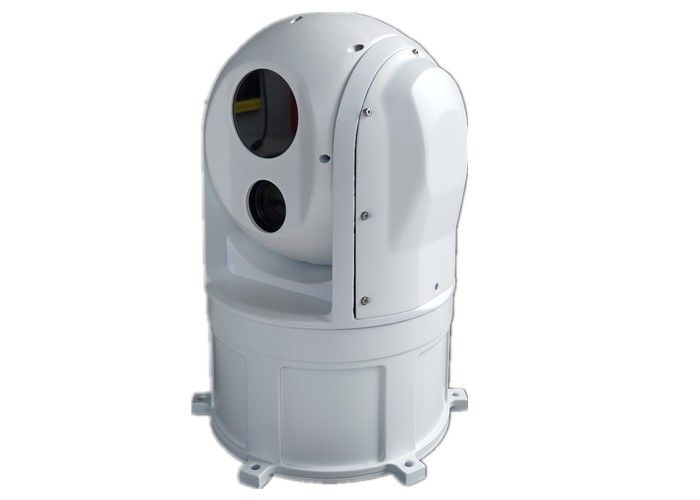

The small UAV gimbal JHP107-M145A adopts 2-axis stabilized platform with high accuracy. Built-in 10x continuous zooming 1080p HD day light camera and uncooled thermal camera with 35m lens,it is mainly applied on USV, unmanned ship to search, observe and track land or sea targets, which can satisfy the aerial photography, flight navigation, reconnaissance and other application demands.It has small size,light weight,compact structure,high asaptability and low power dissipation, great cost-efficiency.
Funtion:
Technical Specification
| Model | JHP107-M145A |
| Platform | Two-axis |
| Azimuth range | n×360° |
| Elevation range | -35°~+110° |
| Max angle speed | ≥60°/s |
| Max angular acceleration | ≥80°/s2 |
| Stabilization accuracy | ≤0.5mrad |
| Angular accuracy | ±0.1° |
| IR Camera | |
| Detector | VOX Uncooled FPA |
| Pixel | 640×512 |
| Spectrum | 7.5~13.5um |
| Focal length | 35mm |
| Pixel size | 17μm×17μm |
| Frame frequency | 25Hz |
| Digital Video | SD-SDI interface |
| Daylight Camera | |
| Resolution | 1920×1080 |
| Focal length | 4.9mm~49mm(10× optical zooming) |
| FOV | 7°03'×4°~49°28'×7°28' |
| Frame frequency | 30Hz |
| Digital Video | HD-SDI interface |
| External Interface | |
| Video | HD-SDI interface(Two-way) |
| Communication | RS232/RS422/RS485 |
| Control protocol | Pelco-D and extended protocol |
| Power Supply | DC 12V |
| Power consumption | ≤15W |
| Physical | |
| Dimension | ≤Φ145mm×205mm |
| Weight | ≤2.5kg |
| Installation | Below belly |
| Color | White&Black |
