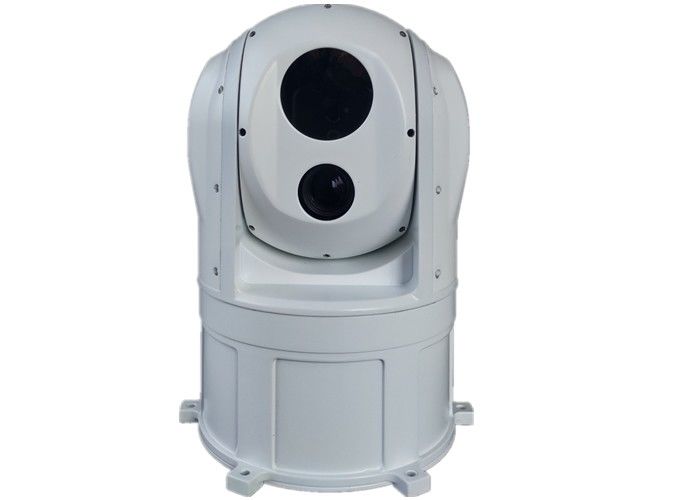

Wireless Digital Transmission And High Adaptability With Two-Axis Infrared HD Daylight Camera And Uncooled IR For UAV

Wireless Digital Transmission And High Adaptability With Two-Axis Infrared HD Daylight Camera And Uncooled IR For UAV

  • Wireless Digital Transmission And High Adaptability With Two-Axis Infrared HD Daylight Camera And Uncooled IR For  UAV
  • Wireless Digital Transmission And High Adaptability With Two-Axis Infrared HD Daylight Camera And Uncooled IR For  UAV
  • Wireless Digital Transmission And High Adaptability With Two-Axis Infrared HD Daylight Camera And Uncooled IR For  UAV
Wireless Digital Transmission And High Adaptability With Two-Axis Infrared HD Daylight Camera And Uncooled IR For  UAV
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHP107-M145A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Safety Equipment Case
Delivery Time: negotiation
Payment Terms: T/T, L/C,, Western Union, MoneyGram
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Gyro Stabilised Gimbal: 2 Axis Sensors: HD Daylight Camera And Uncooled IR
Weight: Gimbal ≤3kg Dimension: 156mm(Diameter)×244mm(H)
Pixel: 640×512 Communication Interface: RS422
Detector: VOX Uncooled FPA Power Supply: DC 12V
Power Consumption: ≤15W Resolution: 1920×1080
High Light:

Infrared Tracking System

,

infrared imaging systems


2-axis Infrared Camera and HD Daylight Camera Small UAV Camera Gimbal

Production:

The small UAV gimbal JHP107-M145A adopts 2-axis stabilized platform with high accuracy. Built-in 10x continuous zooming 1080p HD day light camera and uncooled thermal camera with 35m lens. It is mainly applied on USV, unmanned ship to search, observe and track land or sea targets, which can satisfy the aerial photography, flight navigation, reconnaissance and other application demands.


Funtion:

HD+IR dual sensor for day&night surveillance
Wireless digital transmission
2-Axis gyro stabilization
Standard communication interface
Small size,light weight,compact structure,high asaptability,low power dissipation and great cost-efficiency
Video tracking board realizes real-time traget tracking,support mamual and target locking
Ground contrl terminal can control gimbal working modes and status


Technical Specification

Model JHP107-M145A
Platform Two-axis
Azimuth range n×360°
Elevation range -35°~+110°
Max angle speed ≥60°/s
Max angular acceleration ≥80°/s2
Stabilization accuracy ≤0.5mrad
Angular accuracy ±0.1°
IR Camera
Detector VOX Uncooled FPA
Pixel 640×512
Spectrum 7.5~13.5um
Focal length 35mm
Pixel size 17μm×17μm
Frame frequency 25Hz
Digital Video SD-SDI interface
Daylight Camera
Resolution 1920×1080
Focal length 4.9mm~49mm(10× optical zooming)
FOV 7°03'×4°~49°28'×7°28'
Frame frequency 30Hz
Digital Video HD-SDI interface
External Interface
Video HD-SDI interface(Two-way)
Communication RS232/RS422/RS485
Control protocol Pelco-D and extended protocol
Power Supply DC 12V
Power consumption ≤15W
Physical
Dimension ≤Φ145mm×205mm
Weight ≤2.5kg
Installation Below belly
Color White&Black
