JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight

JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight

  • JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight
  • JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight
JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHP307-B115A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: Two months
Supply Ability: 50 Sets/Year
Contact Now
Detailed Product Description
Applications: Navigation, Positioning, Searching, Ranging Configuration: IR Thermal Camera, Day Light Camera, LRF
Sensor Type: IR+TV+LRF Color: White
Type: EO/IR Thermal Camera System Detector: Uncooled FPA
Pixel: 640x512 Weight: ≤650g
High Light:

Infrared Tracking System

,

infrared imaging systems

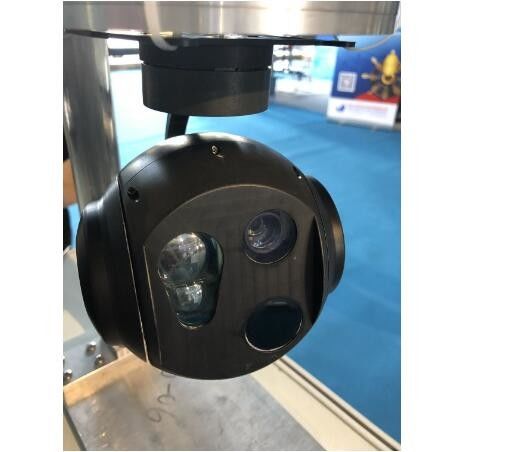

JHP307-B115A Miniature Light Weight Infrared Optical Sensor Radar Tracking System IR+TV+LRF



Application

The JHP307-B115A gimbal can be installed on all types of helicopters, UAVs, and unmanned airships to search, observe and track land and water target, widely applicable for aerial photography, flight navigation and reconnaissance etc. The main functions are described as follows:

  1. Multi sensors support day &night observation, surveillance andtracking.
  2. Three-axis stabilization on azimuth, pitch and roll, no dead angle for observationarea.
  3. Wireless transmission realizes working mode and state control from the ground station as well as real-time transmission of video images to groundstation.
  4. Standard communication interface facilitates communication, installation and debugging with UAV, helicopter and othervehicles.
  5. Small size, light weight and compact structure with strong adaptability, low power consumption and high costefficiency.
  6. Real-time manual/ auto tracking and locking by video tracker (flight target speed less than20km/h).
  7. Assistant target positioning and geo-coordinate guidance with GPS/Bei doumodule.
  8. Output, record and store video data by large-capacity videorecorder






Technical Specification

Thermal Camera
Detector Uncooled Vox FPA
Pixel 640*512
Spectral Band 8μm~14μm
Focus Length 25mm
Day Light Camera
Pixel 1920*1080
Optical Zoom 10x
Laser Range Finder
Wavelength 905nm
Beam Spread Angle ≤1.0mrad
Ranging Accuracy ≤±5m
System Parameter
Stabilization Accuracy 0.5mrad (1σ)
Azimuth 360ºcontinous
Roll -30º~+30º
Elevation -20º+110º
Power Supply DC 12V
Power Consumption
<20W

Demension Φ115× 190mm
Weight <800g


​​JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight 0



JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight 1

JHP307-B115A Infrared Electro Optical Sensor System Miniature Light Weight 2
