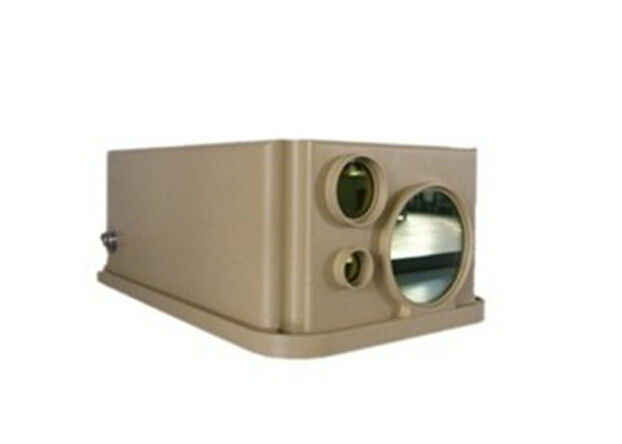

Wireless Digital Gps Laser Range Finder High Reliability And High Accuracy

Wireless Digital Gps Laser Range Finder High Reliability And High Accuracy

Wireless Digital Gps Laser Range Finder High Reliability And High Accuracy

Product Details:

Place of Origin: China
Brand Name: JOHO
Certification: GJB
Model Number: CZ103

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 2months after received payment
Payment Terms: T/T, L/C
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Technology: Laser Style: Laser Range Finder
Kind: 300m~20000m Accuracy: ≥98%
Applications: Portable Electro-optical Surveillance System Feature: High Reliability And High Accuracy



High Reliability and High Accuracy Wireless Digital Gps Laser Rangefinder





20km Laser Rangefinder

20km LRF





Applications:



Portable EO Surveillance System





Features:

  1.  Compact design
  2.  High performance, high reliability
  3.  Designed for military environment
  4.  Portable application, also easily integrated into OEM Systems



Specifications:



Measurement characteristics
Measurement Range 300m~20000m (under clear weather, 5m × 5m target)
Range accuracy +/-5m
Proper Probability ≥98%
Repetition rate 1Hz
Transmitter / Receiver
Wavelength 1.06μm
Beam divergence 1mrad
Interface requirements
Communication Interface RS422
Power supply AC220V
Environmental specification
Operating Temperature -40℃~+55℃
Storage Temperature -45℃~+70℃
Relative humidity 95±3% at 35℃
Vibration

Frequency range: 5Hz~200Hz~5Hz,

Uniform accelerated sine vibration. Acceleration:1.5g.

Direction: X, Y, Z Each direction for 12min

Shock

Acceleration: 30g

Duration time: 11ms±2ms

Direction: X, Y, Z

Times: 6tims / direction

MNBF ≥100,000times
MTTR ≤ 30min
Mechanical specification
Dimension 404mm×255mm×170mm (L x W x H)
Weight 12kg
