Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHP307-B115A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: Two months
Supply Ability: 50 Sets/Year
Contact Now
Detailed Product Description
Applications: Navigation, Positioning, Searching, Ranging Configuration: IR Thermal Camera, Day Light Camera, LRF
Sensor Type: IR+TV+LRF Color: Black
Type: EO/IR Thermal Camera System Detector: Uncooled FPA
Pixel: 640x512 Weight: ≤650g
High Light:

640x512 Electro Optical System

,

JHP307-B115A gimbal

,

helicopter EO IR Thermal Camera System

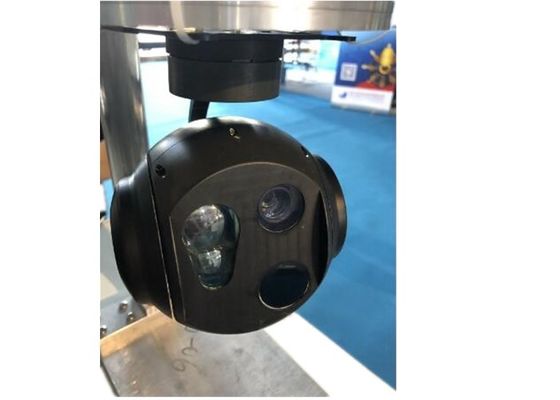

Infrared Electro Optical Sensor System , Light Weight Electro Optical System



Application

The JHP307-B115A gimbal can be installed on all types of helicopters, unmanned aerial vehicles, and unmanned airships to search, observe and track the land and water target, widely applicable for aerial photography, flight navigation and reconnaissance etc.


Function



1 Dual sensors support day & night observation; reserved laser ranging function.
2 Three-axis stabilization on azimuth, pitch and roll, no dead angle for observation area.
3 Wireless transmission realizes working modes and states control from the ground workstation as well as real-time transmit of video images.
4 Standard communication interface facilitates communication, installation and debugging with UAV, helicopter and other vehicles.
5 Small size, light weight and compact structure with strong adaptability, low power consumption and high cost efficiency.Small size, light weight and compact structure with strong adaptability, low power consumption and high cost efficiency.
6 Real-time manual/ auto tracking and locking by video tracker (flight target speed less than 20km/h).
7 Assistant target positioning and geo-coordinate guidance with GPS/Bei dou module.
8 Output, record and store video data by large-capacity video recorder.




Technical Specification

Thermal Camera
Detector Uncooled Vox FPA
Pixel 640*512
Spectral Band 8μm~14μm
Focus Length 25mm
Day Light Camera
Pixel 1920*1080
Optical Zoom 10x
Laser Range Finder
Wavelength 905nm
Beam Spread Angle 1.0mrad
Ranging Accuracy ±5m
System Parameter
Stabilization Accuracy 0.5mrad (1σ)
Azimuth 360ºcontinous
Roll -30º~+30º
Elevation -20º+110º
Power Supply DC 12V
Power Consumption
<20W

Demension  Φ115× 190mm
Weight <800g

Infrared Electro Optical Sensor System , Light Weight  Electro Optical System 0Infrared Electro Optical Sensor System , Light Weight  Electro Optical System 1
