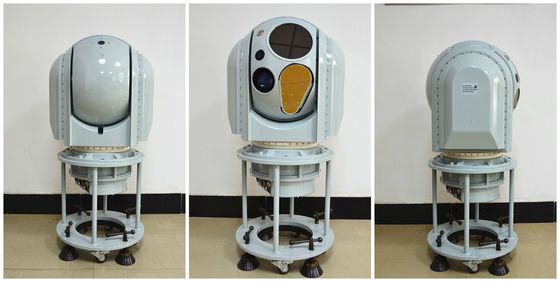

Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder

Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder

    • Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder
    • Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder
    • Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder
  • Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder

    Product Details:

    Place of Origin: China Wuhan
    Brand Name: Wuhan Joho
    Certification: ISO, SGS
    Model Number: JH602-300/75

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiable
    Packaging Details: standard packaging
    Delivery Time: 4 month
    Supply Ability: 500pcs per year
    Contact Now
    Detailed Product Description
    Sensor: MWIR Thermal Camera, TV, 20km Laser Range Finder Function: Target Acquisition, Aiming, Tracking, Provide Target Position To CMS
    Application: Auxiliary Navigation, As Electro Optical Director Output Target Position To CMS Sensor Type: IR+TV+ELR



    Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder

    JH602-300/75 system is equipped with a high performance MWIR cooled thermal camera, continuous zoom TV camera and 20km laser range finder, enables Search target at day/night, as well as aiming, recognition, tracking, ranging target, real-time providing target angle, angular speed, VI (video/image) etc information. It keeps the sensors Lines of Sight (LOS) aiming and direction stabilization while the carrier (ship) attitude changing or under vibration condition. JH602-300/75 system can work independently, additionally can receive slaving instruction from HOST, working with various launching system to attack sea and air target; Additionally, it also can be used as ship auxiliary navigation and surveillance at night.


    FUNCTIONAL AREA
    Isolate carrier (ship disturbance, stabilized the LOS (line of sight)
    Day/night observation, search and aiming target
    Day/night detection, recognition and identification on specified target
    Manual/auto tracking target
    Ranging target
    Report captured target angular and ranging data relative to reference axis
    Report captured target angular speed
    System self-checking and report self-checking result.



    TECHINICAL SPECIFICATION

    THERMAL CAMERA
    Detector cooled HgCdTe FPA
    Pixel 320*256 ( optional 640*512 higher resolution)
    Spectral band 3.7μm~4.8μm
    FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
    FOV switching time ≤ 1s
    Electronic zoom
    DAY LIGHT CAMERA
    Detector 752*582, 1/3" white/black CCD
    FOV 18°*13.5°~1°*0.75° continuous zoom
    LASER RANGE FINDER
    Wavelength 1.06μm
    Ranging 300m~20km (visibility 23km, 15m*10m target)
    Measurement accuracy ≤ ± 5m
    SERVO
    Stabilization accuracy ≤ 0.2mrad (1σ)
    Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
    TURRET
    Azimuth ≥50°/s
    Elevation ≥50°/s
    Video signal format CCIR PAL standard B/W
    Communication RS422/RS232
    ENVIRONMENTAL
    Operating temperature range -40ºC ~ +50ºC
    Storage temperature range -50ºC ~ +70ºC
    POWER
    Power Supply DC 24V/15A, DC28V/20A
    Power Consumption

    DC24/96W (avg.)/240W (Max.)

    DC28V/28W(avg.)/70W (Max.)

    PHYSICAL
    Dimension Turret ≤ Φ400× 750mm
    Control box 500 mm X 230 mm X 87 mm
    Turret Weight ≤ 120kg (including mobile base);
    Control box Weight ≤ 5kg


    Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder
    Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder
    Naval EO IR Camera System with MWIR Thermal Camera , 20Km Laser Range Finder
