25Hz Infrared Surveillance Camera , Thermal Imaging Camera For Target Observation

25Hz Infrared Surveillance Camera , Thermal Imaging Camera For Target Observation

    • 25Hz Infrared Surveillance Camera , Thermal Imaging Camera For Target Observation
    • 25Hz Infrared Surveillance Camera , Thermal Imaging Camera For Target Observation
    • 25Hz Infrared Surveillance Camera , Thermal Imaging Camera For Target Observation
  • 25Hz Infrared Surveillance Camera , Thermal Imaging Camera For Target Observation

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: JH320-300/75

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Security Equipment Case
    Delivery Time: 45days after received payment
    Payment Terms: T/T, L/C
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Infrared Detector: Cooled HgCdTe FPA Pixel & Pitch: 320x256,30μm
    Optics Focus Length: 300mm/75mm F#:2.0 NETD: ≤25mK(at 25℃)
    Video Output: Analog Video: Standard PAL Digital Video: Camera-link Base Frame Frequency: 25Hz

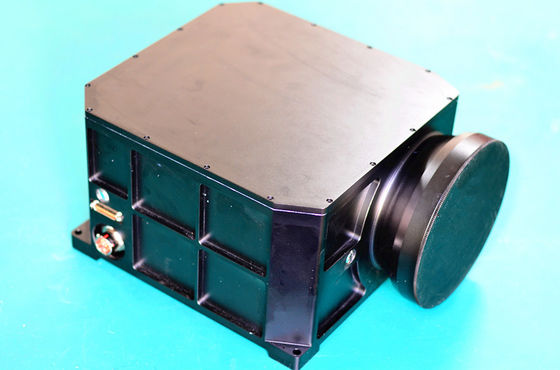

    JH320-300/75  Long Range Dual - FOV Switch Observation Thermal Security Camera



    Introduction

    1. JH320-300/75 Long range dual - FOV switch observation thermal security camera is a matured and high reliability product with military standard.
    2. It adopts the advanced image processing algorithms which greatly enhanced the image quality and camera performance under special environment.
    3. Thanks to compact and total weather-proof design, it allows operation in any harsh environment.



    Features

    • Switchable 2-FOV optics satisfies multi-mission and fast searching and accurate locating
    • Standard mechanical interface for easy integration
    • Weather-Proof, compact and rugged design



    Applications

    •  Border/Coastal security surveillance and monitoring
    •  EO IR system integration
    •  Search and rescue
    •  Airport, bus station, sea port, dock monitoring
    •  Forest fire prevention
    •

    TECHNICAL SPECFICATION



    DETECTOR
    Detector Cooled HgCdTe FPA
    Pixel 320x256 (optional: 640×512)
    Spectral Range 3.7μm~4.8μm
    NETD ≤25mK(at 25℃)
    Cooling Type Stirling Cycle Cooling
    Cooling ≤8min at 25ºC
    OPTICS
    Focus Length 300mm/75mm F#:2.0
    FOV 1.8°×1.4°/ 7.3°×5.8° (H x V)
    IMAGE DISPLAY
    Video Output

    Analog Video: Standard PAL

    Digital Video: Camera-link base

    Frame Frequency 25Hz
    Brightness & Contrast Auto/Manual
    Polarity BH&WH
    COMMUNICATION INTERFACE
    Command and Control RS232 / RS422
    POWER SUPPLY
    Power Supply 24VDC (18VDC~36VDC)
    Power Consumption ≤25w
    ENVIRONMENTAL
    Operating Temperature -40ºC~+60ºC
    Storage Temperature -50ºC~+70ºC
    Vibration &Shock Proof GJB150.16-86 /MIL-STD-810F-514.5
    High & Low Temperature Test GJB150.3-86 / MIL-STD-810F-514.5
    PHYSICAL
    Weight 10.54kg
    Size 322mm×254mm×171mm (L×W×H)
    Color Oxide black
    DETECTION RANGE
    Detection Range 8km (target:2.3m x 2.3m vehicle)
