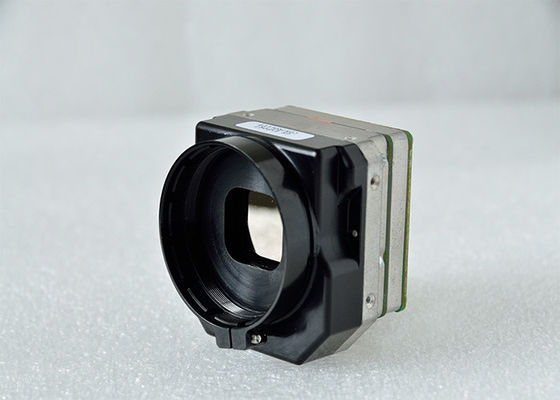

Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance

Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance

    • Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance
    • Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance
    • Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance
  • Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: CE, ISO9001:2000
    Model Number: JH101-640A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Safety equipment case
    Delivery Time: 7days after received payment
    Payment Terms: T/T, L/C
    Supply Ability: 1000Sets/Year
    Contact Now
    Detailed Product Description
    Technology: Infrared Style: Core
    Type: Module Sensor: LWIR Uncooled VOx FPA
    HDMI Format: PAL/NTSC Pixel: 640x512
    Pitch: 17μm X 17μm Standard: GJB, Military Technical Equipment
    Configuration: Thermal Camera Integration, Secondary Development NETD: Complete Module≤60mk(F/1); Detector≤50mk(F/1)

    High Resolution Uncooled VOx FPA Infrared Thermal Imaging Module for Ground Surveillance





    FEATURES:




    l Uncooled VOx FPA Microbolometer, high sensitivity and high resolution.

    l New generation FPGA intelligent image processing provides clear image.

    l Multiple control interfaces and image output interfaces easy for integration.

    l Compact and light weight.

    l Wide power supply range, low power dissipation and short start time.





    Product Details



    Thermal imaging module for ground surveillance.





    Product Features



    Description of JH101-640-A thermal imaging module for ground surveillance:

    1. Mature technology of odule part; fulfill the military purchase plan of more than 50sets.
    2. Take DDE algorithm
    3. The improved sample module for day and night border/coast defense surveillance have passed the test and meets the requirement.
    4. The detector we used is the smallest pixel sensitive size in all uncooled detector, it is only 17μm×17μm, and the pixel quantity is 640x512, hence this module have some advantages of best resolution, biggest field of angle, longest recognition distance and biggest observation range when the focus is fixed.
    5. Small volume and light weight.
    6. Video recording function and camera function is optional.



    Technical Specfication



    Detector
    Detector Uncooled VOx Microbolometer
    Pixel 640×512
    Pitch 17μm×17μm
    Spectral band 8μm~12μm
    Imaging Performance
    NETD Complete module≤60mk(F/1); Detector≤50mk(F/1)
    Video output PAL, 25 frames
    Starting times <20s
    Control Function
    Communication interface RS232
    Focus Sampling Voltage Auto-focus signal
      Manual background calibration, manual shutter calibration, polarity setting, 2X electric zoom, cross cursor display, image gain adjustment, image brightness adjustment, image enhancement, system parameters reset.
    Power System
    Power supply DC 7~12V
    Power dissipation ≤2.0W@25℃
    Motor drive Double lines
    Auxiliary power supply Double lines of 5VDC
    Environmental Specifications
    Working temperature -40℃~+60℃
    Storage temperature -50℃~+70℃
    Physical Specifications
    Size 44.5mm(L)×44.5mm(W)×40mm(H)
    Weight Approx 65g (excluding lens)
