Long Range Ground Surveillance Radar Systems With IR Compound Tracking System

Long Range Ground Surveillance Radar Systems With IR Compound Tracking System

    • Long Range Ground Surveillance Radar Systems With IR Compound Tracking System
  • Long Range Ground Surveillance Radar Systems With IR Compound Tracking System

    Product Details:

    Place of Origin: CHINA
    Brand Name: JOHO
    Certification: ISO9001:2000,GJB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Customed Packing
    Delivery Time: 6months after received payment
    Payment Terms: L/C, T/T
    Supply Ability: 100Sets/year
    Contact Now
    Detailed Product Description
    Type: Ku Band Radar Radar: Tracking And Guidance Radar
    Range: 30km Against 2m2 Rcs Aircraft ; 12km Against Sea-skimming Target Tracking Coverage: 360°(az); -30°~85°(el)
    IR: 3~5μm & 8~12μm Radar Beam Width: 1.2°
    System: Ku Band Radar+IR Compound Tracking Antenna Type: Cassegrain Antenna
    High Light:

    maritime radar systems

    ,

    coastal radar surveillance system

    Long Range Ground Surveillance Radar Systems With IR Compound Tracking System





    Description

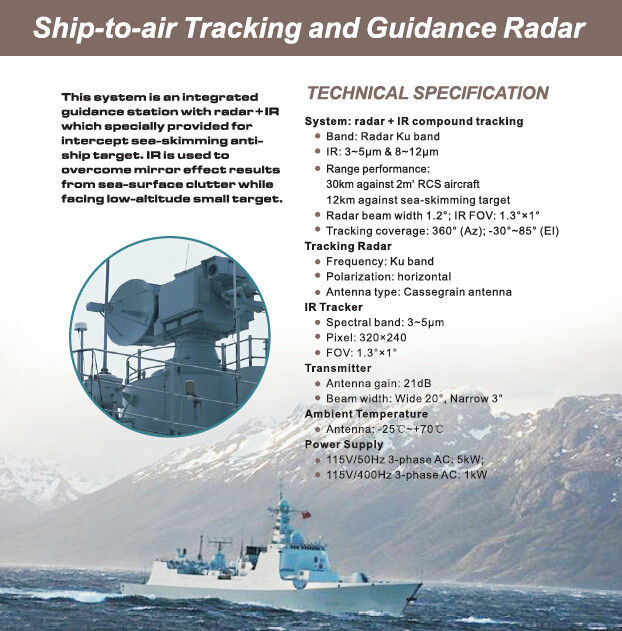

    Ship-to-air IR Compound Ku Band Surveillance Tracking and Guidance Radar System is an integrated guidance station with radar+IR which specially provided for intercept sea-skimming anti-ship target. IR is used to overcome mirror effect results from sea-surface clutter while facing low-altitude small target.



    Technical specification



    System: Radar+ IR compound tracking
    Band Ku band
    IR 3~5μm & 8~12μm
    Range performance 30km against 2m2 RCS aircraft ; 15km against sea-skimming target
    Radar beam width 1.2°
    IR FOV 1.3° X 1°
    Tracking coverage 360° (Az); -30°~85° (El)
    Tracking Radar
    Frequency Ku band
    Polarization Horizontal
    Antenna type Cassegrain antenna
    IR Tracker
    Spectral band 3~5μm
    Pixel 320x240
    FOV 1.3° X 1°
    Transmitter
    Antenna gain 21dB
    Beam width Wide 20°, Narrow 3°
    Ambient temperature
    Antenna -25ºC~+70ºC
    Power supply
    115V/50Hz 3-phase AC 5kW
    115V/400Hz 3-phase AC 1kW
