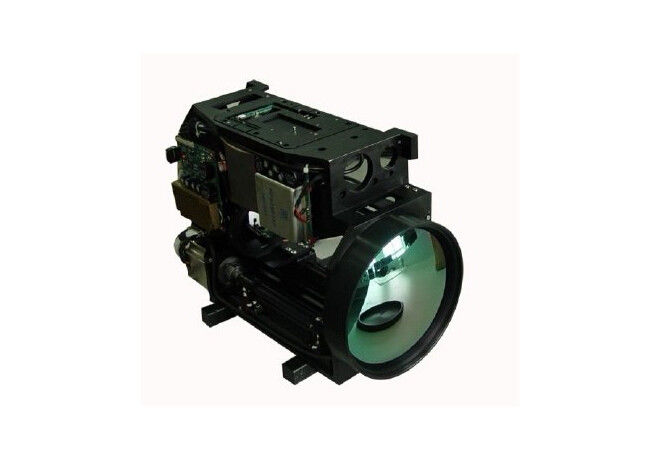

Long Distance Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output

Long Distance Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output

    • Long Distance Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output
    • Long Distance Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output
  • Long Distance Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: jh640-1100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Customized Aluminum Alloy Case
    Delivery Time: 2-3months after received payment
    Payment Terms: T/T, L/C
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Technology: Infrared Style: Motorized Tri-Fov
    Type: Thermal Camera Sensor: MWIR Cooled HgCdTe FPA
    HDMI Format: PAL/NTSC Horizontal Resolution: 320x256
    Certification: ISO9001: 2000 Effective Distance: 15km
    Sensor Size: 320X256 Detection Ramge: >15km (Vehicle); >10km (Human)
    Focus Length: 600mm/137mm/22mm

    Long Range Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output



    JH640-1100 Long Range Thermal Security Camera .pdf...



     JH861 Long Range Surveillance MWIR Cooled Infrared Thermal Camera with 600/137/22mm is especially designed for long range surveillance with long focus length. Multiple field of view optics 600/137/22mm, it achieves the super long mission of fast situational awareness and target reorganization with the wonderful wide, medium and narrow Field of view in one system. It is definitely a very good choice for ground, coast and air defense or secondary development.



    Range performace


    Target

    medium vehicle

    human

    Detection range

    ≥15km

    ≥10 km

    Recognition range

    ≥10 km

    ≥5 km



    Technical Data


    Detector
    Detector materials Cooled FPA HgCdTe
    Pixels 320× 256, 30μ m× 30μ m
    Spectral range 3.7~4.8μ m
    NETD ≤ 15 mK (F#4)
    Cooling ≤ 8Min, Stirling
    Optics
    Lens 600mm/137mm/22mm (F#4)
    FOV WFOV: 24.6° × 19.8°/MFOV: 4° × 3.2°/NFOV: 0.92° × 0.73°
    Image presentation
    Video output Analog PAL/NTSC; digital Cameralink
    Frame frequency 25Hz, 50Hz (100Hz, 200Hz optional)
    Brightness & contrast Auto/Manual
    Polarity B& W, B& W inverse
    Interfaces
    Command and control RS232/ RS422 alternative
    Interface Optional: Cameralink
    Video output RCA/BNC alternative
    Power System
    Power supply 110/ 220VAC adapter
    Environmental Parameters
    Operating temperature -40° C to +60° C
    Storage temperature -40° C to +60° C
    Physical Characteristics
    Weight 8.1kg (without housing)
    Color Black



    Long Distance Surveillance MWIR Cooled Infrared Thermal Camera PAL / NTSC Video Output
