WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | Wuhan China |
| Brand Name: | JOHO |
| Certification: | CE, ISO9001:2000 |
| Model Number: | JH101-320A/B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Safety equipment case |
| Delivery Time: | 7days after received payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000Sets/Year |
| Technology: | Infrared | Style: | Core |
|---|---|---|---|
| Type: | Module | Detector: | LWIR Uncooled VOx FPA |
| HDMI Format: | PAL/NTSC | Pixel: | 320X240 |
| Pitch: | 17μm X 17μm | Input Voltage: | DC7~12V |
| Spectral Band: | 8~12μm | Dimension: | A: 44.5x44.5x40mm B: 51x49x40mm |
| High Light: | thermal imaging camera module,infrared camera module |
||

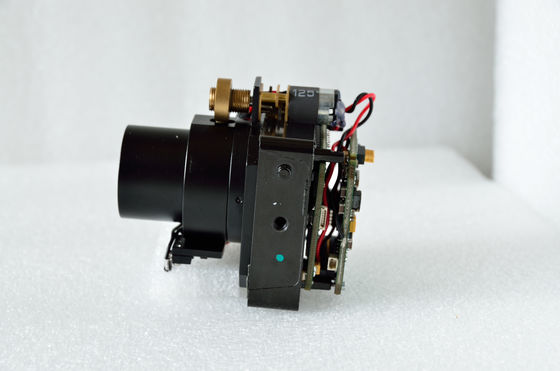

Small Volume UAV Infrared Thermal Imaging Module With S232 Interface
Application:
Provide cooled thermal imaging module required by complete thermal camera development and system integration for the research institutes and enterprises.
Features:
Functions:
Manual background / shutter calibration
WH/BH polarity switch
Cross cursor display / hiding and position adjustment
Automatic focus, FOV switch, continuous zooming
System parameter self-check / reset
Technical Specification:
|
Detector |
|
|
Detector |
Uncoold FPA VOx |
|
Pixel |
320×240 |
|
Pitch |
A:17μm×17μm B: 38μm x 38μm |
|
Spectral band |
8~12μm |
|
Image presentation |
|
|
NETD |
Camera ≤60mK (F/1); Detector ≤50mK (F/1) |
|
Video output |
PAL, 25Hz |
|
Starting time |
≤20s |
|
Control |
|
|
Communication interface |
RS232 |
|
Adjustment |
Manual background correction, Manual shutter correction, polarity setting, 2× electronic zoom, cross line display, gain adjustment, brightness adjustment, cross line position adjustment, enhancement, motorized focusing, parameters reset |
|
Power Supply |
|
|
Input voltage |
DC7~12V |
|
Power consumption |
<1.6W@25℃ |
|
Motor driving |
2-way |
|
Auxiliary power |
2-way 5VDC |
|
Environmental |
|
|
Operating temperature |
-40℃~+60℃ |
|
Storage temperature |
-50℃~+70℃ |
|
Physical |
|
|
Dimension |
A: 44.5x44.5x40mm B: 51x49x40mm |
|
Weight |
A: 58g B:92g |
