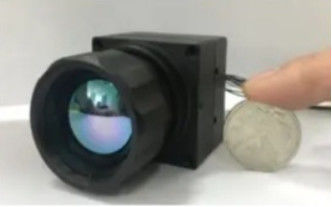

Uncooled FPA Thermal Imaging Module Lightweight 640×512

Uncooled FPA Thermal Imaging Module Lightweight 640×512

  • Uncooled FPA Thermal Imaging Module Lightweight 640×512
  • Uncooled FPA Thermal Imaging Module Lightweight 640×512
  • Uncooled FPA Thermal Imaging Module Lightweight 640×512
Uncooled FPA Thermal Imaging Module Lightweight 640×512
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: CE, ISO9001:2000
Model Number: G04-640
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Safety equipment case
Delivery Time: negotiation
Payment Terms: T/T
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Core
Type: Module Sensor: Uncooled FPA
HDMI Format: PAL Pixel: 640*512
Pitch: 17um Standard: GJB, Military Technical Equipment
Configuration: Thermal Camera Integration N E T D: ≤50mk(@F/1, 25℃)
Operating Temperature: -40℃~+60℃
High Light:

Uncooled FPA Thermal Imaging Module

,

17um Thermal Imaging Module

,

640x512 Thermal Camera Module



640×512 Uncooled FPA Thermal Imaging Module With And Light Weight





Technical Specification



DETECTOR
Detector Vanadium oxide uncooled FPA (domestic)
Pixel 640×512
Pitch 17um
Spectral Band 8um~14um
Frame Frequency 50Hz/25Hz
NETD ≤50mk(@F/1, 25℃)
Cooling Down ≤12s
FUNCTION INTERFACE
Video Output 1 way, PAL
Communication & Control Interface RS232/ I2C/ UART (optional)
Shutter Calibration Automatic
Polarity BH/WH; Pseudo
Electronic Zoom ×2/×4
Cross Cursor Display On/off
Cross Cursor Position Adjustable
Image Gain Adjustable
Image Brightness Adjustable
Image enhancement Adjustable
Power Supply DC4V~5.5V or DC4V~19V
Consumption <1.7W( full operating temperature with TEC)
ENVIRONMENTAL
Operating Temperature -40℃~+60℃
Storage Temperature 50℃~+70℃
PHYSICAL
Dimension 35mm×35mm×35mm
Weight ≤82g (without lens)
