RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module

RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module

  • RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module
  • RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module
  • RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module
RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: UWA384CX-H09-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable

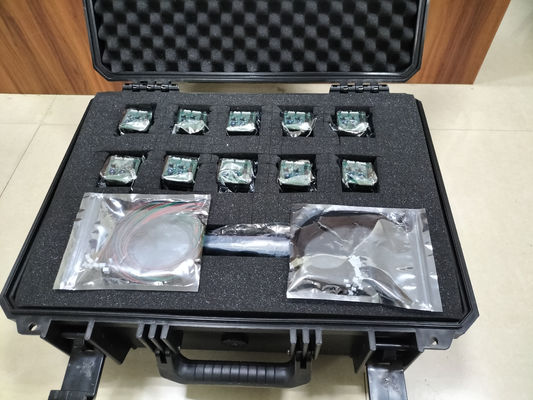

Packaging Details: safety box with vibration proof, water proof
Delivery Time: negotiable
Payment Terms: T/T, L/C
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Detector Type: VOx Uncooled Infrared LWIR Pixel: 1280×1024
NETD: 40mK Spectral Band: 8~14μm
Power Supply: DC 6.5V~13V Communication Interface: RS422
Time To Image: ≤20s Size: 46mm×48.9mm×42mm
Power Consumption: ≤1.7W@25℃ Operating Temperature Range: -40℃~+60℃
High Light:

Uncooled Infrared LWIR Camera Module

,

RS422 Thermal Imaging Camera Module

,

Uncooled Infrared LWIR Thermal Imaging Module

Uncooled Infrared LWIR Thermal Imaging Camera Module




Features

  • Suit long-range, multi-task search and observation
  • Miniature size and light weight
  • High sensitivity and high resolution
  • Standard interface , easy to integrate
  • Entire enclosure shell protection and compact design

Technical Specification

Model UWA384CX-H09-F
Type VOx Uncooled Infrared LWIR
Array format 384×288, 25μm
Spectral response 8~14μm
Power consumption ≤1.7W@25℃
Power supply DC 6.5V~13V
Time to image ≤20s
Operating temperature range -40℃~+60℃
Storage temperature rage -55℃~+70℃
NETD (@1/f. 25Hz) 40mK
Focus motor driver PWM adjustment
Video output 2 channel Analog video output, PAL formats
Communication interface RS422
Main control function

Manual background calibration, Manual shutter calibration, Polarity setting, 1×~2× continuous zooming, Cross cursor display, Cross cursor position adjustment, Gain adjustment, Brightness adjustment,
Digital Details Enhancement (DDE), Motorized focusing, Reticle display settings, System parameter reset

Five type reticle RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module 0
Size 46mm×48.9mm×42mm
Weight ≤90g


RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module 1RS422 Uncooled Infrared LWIR Thermal Imaging Camera Module 2
