Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered

Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered

    • Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered
    • Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered
    • Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered
  • Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001
    Model Number: JHT640-35

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard packing
    Delivery Time: 3 months
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    High Light:

    No Light Leakage Hand Held Binoculars

    ,

    Ergonomic Hand Held Binoculars

    ,

    li battery powered portable binoculars

    JHT102-S03-640PA Portable Hand-held Binocular

     Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered 0

    Solid and light; low power consumption, long life, automatic, one button start, high-definition high magnification display; automatic screen closing, no light leakage, safe and reliable

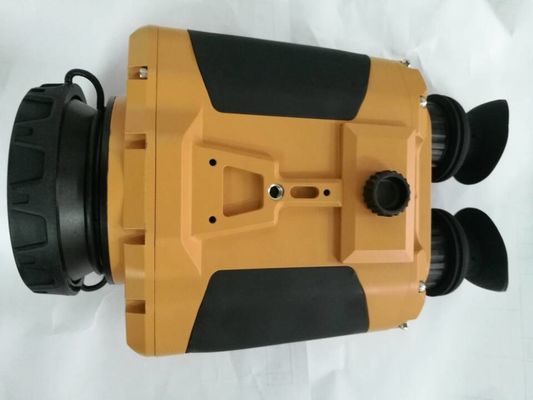

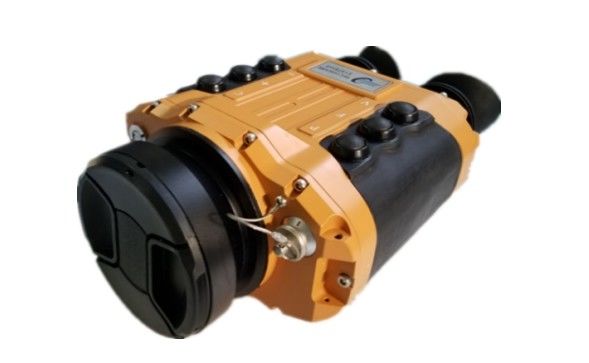

    1. Appearance



    2. Technical Specification

    2.1 Feature



    1) Thermal Camera



    a) Starting time for sensor<10s

    b) Menu function with focus, DDE, polarity setting, E-zoom, etc



    c) Image enhancement DDE ;



    d) Power consumption:≤2W@25℃;



    e) Communication : RS232 serial port, there is corresponding serial port command for each button operation;



    f) Automatic shutter correction after power-on. Auto correction is not allowed after image appears, but manual correction is allowed;Starting time for sensor<10s





    2) Structure



    a) Compatible with 640, 320 sensor



    b) Compliant with ergonomic design



    3) Battery



    a) 7.4V,1500~1800mAh( two pieces 18650)



    b) satisfied with -40℃ working requirement

    2.2 Performance



    1) Range performance



    Range

    performance



    Human(1.8×0.5m)



    Vehicle(2.3×2.3m)



    Vessel (10m²)

    Detection 0.5km 0.8km 1.8km
    Recognition 0.25km 0.4km 0.9km

    2) Parameter









    Detector

    Type Vox Uncooled FPA
    Pixel 640×512
    Spectral band 8~14µm
    Pixel size 17µm







    Lens

    Focal length 35mm
    Focus Motor-driven
    F# F 1.0
    FOV 17.81°× 14.25°
    Thermal NETD ≤50mk@25℃



    image performance Image enhancement Auto image filter, DDE
    AGC

    Auto/Manual brightness contrast

    adjustment

    Image BH/WH
    E-zoom 2×, 4×







    Image display

    Eyepiece module 800×600 OLED adjustable diopter
    Storage card Built-in 32G
    Storage type Photo shooting/video shooting, with time stamp
    Capacity >9000 images/2 hours
    Format JPG





    Power supply system

    Battery type Chargeable Li-battery
    Working time No less than 4hours
    Charge type Power supply adapter
    External power supply DC12V











    Physical

    Weight ≤800g (subject to final design)
    Dimension ≤300×80×80mm (subject to final design)
    Electrical interface

    Power supply, video PAL, communication

    RS232, USB

    Mechanical interface 1/4’’ standard interface



    Environmental

    Working temperature -40℃~﹢60℃(except external monitor)
    Working humidity Up to 95%RH
      IP level IP67
      Environmental test Complying with GJB150 standard
